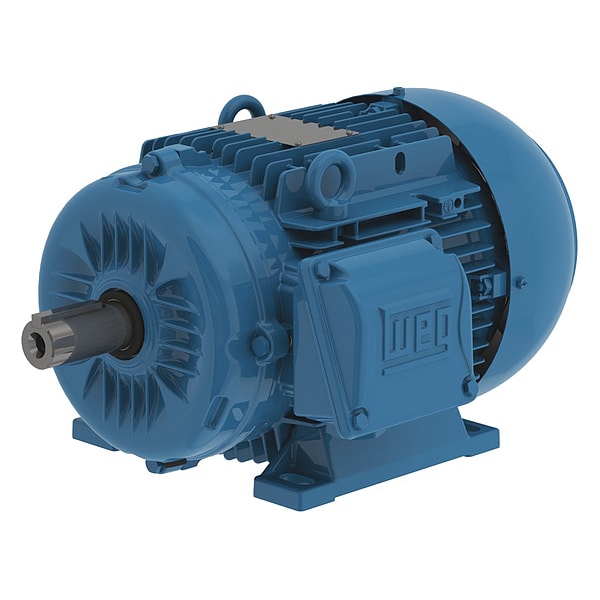

3-Phase Metric Motor, 1 1/2 HP, 100L Frame, 460V AC Voltage, 1,160 Nameplate RPM

SKU
Brand Weg
Categories
Description Metric Motor, Three Phase, Motor Design 3-Phase, 1 1/2 hp HP, Nameplate RPM 1,160, No. of Speeds 1, Voltage 460V AC, Full Load Amps 3.0 A, 100L Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Frame Material Cast Aluminum
graingerSKU: 482V68, mscSKU: , zoro_no: G6547447, mongo_id: 65bbe93422d7a989a993f928

Web Price

$1,129.99 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Brazil

Duty Continuous

Duty Cycle Continuous

Frame 100L

Full Load Amps 3.0 A

Full Load Amps @ 50Hz 3 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP_ 1 1/2

Hz_ 60/50 Hz

Includes Eye Bolt

Ins. Class F

kW_ 1.1

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Aluminum

Motor Mounting Type Rigid Base

Motor Service Factor 1.25

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,160

No. of Speeds 1

Nominal Efficiency 88.5 %

Package Quantity 1

Phase Three

RPM Range 1,101-1,200

Shaft Dia. 28 mm

Shaft Length 60 mm

Standards IEC34, IEC79

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
