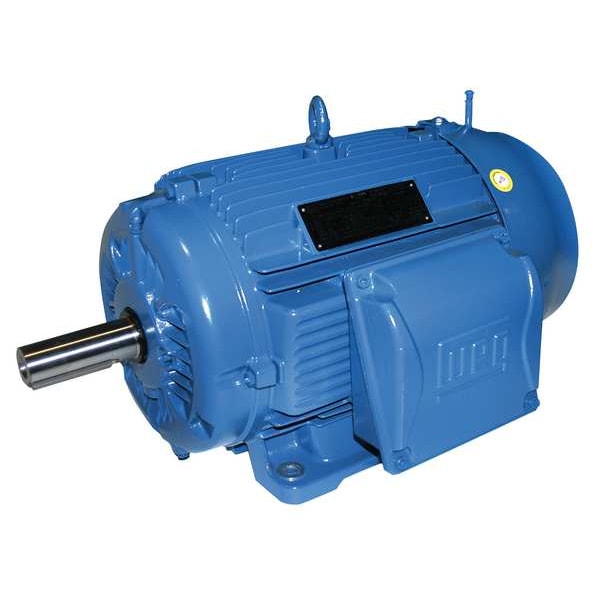

Home / 3-Phase Metric Motor, 5 1/2 HP, 112M Frame, 230/460V AC Voltage, 1,755 Nameplate RPM
3-Phase Metric Motor, 5 1/2 HP, 112M Frame, 230/460V AC Voltage, 1,755 Nameplate RPM

3-Phase Metric Motor, 5 1/2 HP, 112M Frame, 230/460V AC Voltage, 1,755 Nameplate RPM

  • Weg
  • Metric Motor, Three Phase, Motor Design 3-Phase, 5 1/2 hp HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 460V AC, Full Load Amps 7.28 A, 112M Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed

    graingerSKU: 10G872, mscSKU: , zoro_no: G7041632, mongo_id: 65bbe93422d7a989a993f926

Web Price
$969.99 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
112M
Cast Iron
7.28 A
8.09, 8.20, 8.47 A
NEMA Premium(R) Rated
5 1/2
5 1/2
60 Hz
F
4.0
334 mm
3 yr
104 Degrees F
General Application
Ball
3-Phase
Totally Enclosed Fan-Cooled
Cast Iron
Rigid Base
1.25
Keyed
CW/CCW
None
1,755
None
1
88.5 %
394 mm
1
Three
1,450
1,701-1,800
1
28 mm
60 mm
CE, CSA (LR38324), UL (E104590)
No
No
460V AC
380V AC, 400V AC, 415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
101 lb
