Home / Capacitor-Start General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 56C Frame

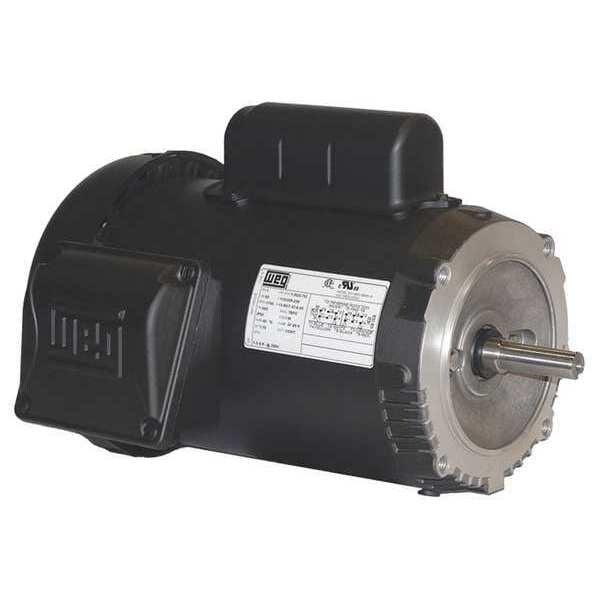

Capacitor-Start General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 56C Frame

Capacitor-Start General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 56C Frame

  • Weg
  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 3,500, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.00/3.87-3.50 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face

    graingerSKU: 52XR26, mscSKU: , zoro_no: G7745020, mongo_id: 65bbe8789a749db82279414b

Web Price
$414.99 / each
Qty

Product Details

Multiple
Continuous
Continuous
56C
7.00/3.87-3.50 A
1/2 hp
60 Hz
F
No
9 5/8 in
3 yr
104 Degrees F
General Application
Ball
Capacitor-Start
Standard Efficient
Totally Enclosed Fan-Cooled
Steel
All Angle
Face
1.15
Keyed
CW/CCW
None
3,500
N
1
60 %
11 1/2 in
1
Single
3001-3600
5/8 in
1 7/8 in
CSA, UL
No
Yes
115/208-230V AC
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
20.8 lb
