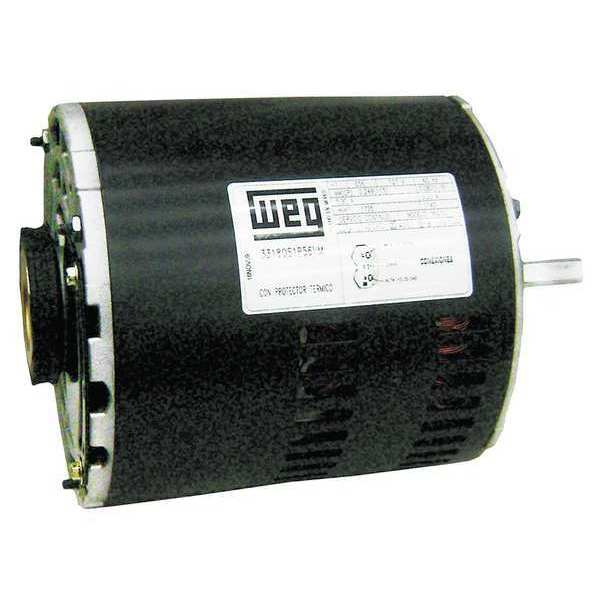

Evaporative Cooler Motor, 240V, Ring, Auto

SKU
Brand Weg
Categories
Description Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/2, 1/6 HP, Nameplate RPM 1,800/1,200, No. of Speeds 2, Voltage 230V AC, 4.8/2.1 Full Load Amps, 56 Frame, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Ring, Motor Mounting Position All Angle, Shaft Length 1 7/8 in, Shaft Dia. 5/8 in
graingerSKU: 6AYP2, mscSKU: , zoro_no: G3546313, mongo_id: 65bbe99422d7a989a9963739

Web Price

$546.24 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Body Dia. 6 7/16 in

Country of Origin (subject to change) Multiple

Features Epoxy Paint Over a Layer of Zinc Phosphate Helps Prevent Corrosion

Frame 56

Full Load Amps 4.8/2.1

HP_ 1/2, 1/6

Hz_ 60

Ins. Class B

Length Less Shaft 7 7/8 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Split-Phase

Motor Enclosure Design Open Dripproof

Motor Mounting Position All Angle

Motor Mounting Type Ring

Motor Service Factor 1

Motor Shaft Rotation CWSE

Motor Sub Application Evaporator Cooler

Motor Thermal Protection Auto

Nameplate RPM 1,800/1,200

No. of Speeds 2

Overall Length 9 9/16 in

Package Quantity 1

Phase Single

Resilient Ring Dia. 2 1/2 in

Ring Dia. 2 1/2 in

Ring to Ring Center 7 7/16 in

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Shaft Length 1 7/8 in

Standards UL Recognized for US and Canada

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 24 lb
