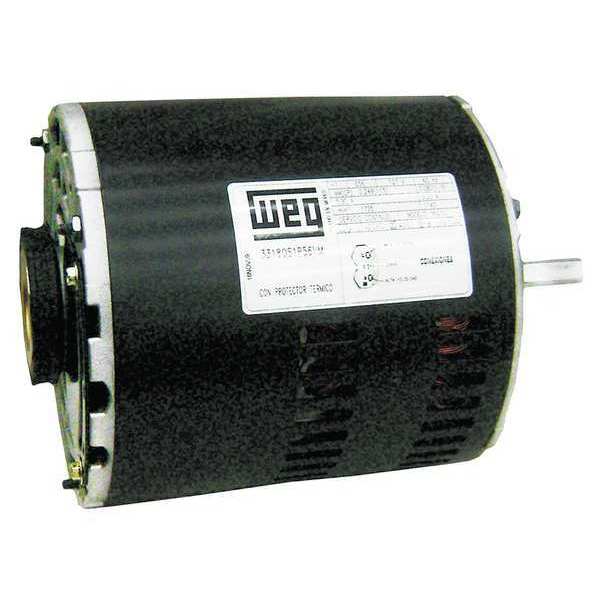

Evaporative Cooler Motor, 240V, Ring, Ball

SKU
Brand Weg
Categories
Description Evaporative Cooler Motor, Single Phase, Motor Design Capacitor-Start, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, 5.5 Full Load Amps, 56 Frame, Output Watts 550 W, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Ring, Motor Frame Material Steel
graingerSKU: 6AYP6, mscSKU: , zoro_no: G3520011, mongo_id: 65bbe7753aaddbd5a9096464

Web Price

$362.67 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Body Dia. 6 7/16 in

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Multiple

Duty Cycle Continuous

Features Epoxy Paint Over a Layer of Zinc Phosphate Helps Prevent Corrosion

Frame 56

Full Load Amps 5.5

HP_ 3/4

Hz_ 60

Ins. Class B

Length Less Shaft 7 7/8 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Ring

Motor Service Factor 1

Motor Shaft Rotation CWSE

Motor Sub Application Evaporator Cooler

Motor Thermal Protection Auto

Nameplate RPM 1,725

No. of Speeds 1

Nominal Efficiency 59 %

Output Watts 550 W

Overall Length 9 9/16 in

Package Quantity 1

Phase Single

Removable Base Yes

Resilient Ring Dia. 2 1/2 in

Ring Dia. 2 1/2 in

Ring to Ring Center 7 7/16 in

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Shaft Length 1 7/8 in

Standards UL Recognized for US and Canada

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 19 lb
