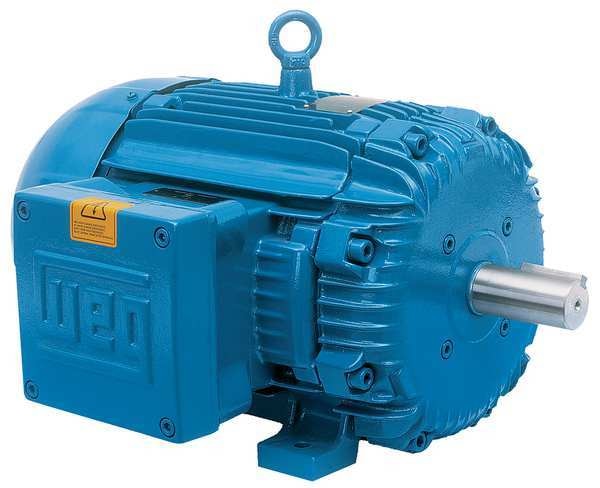

Hazardous Loc Mtr, 3 Ph, TEFC, 350 HP, T3C

SKU
Brand Weg
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 350 HP, Nameplate RPM 1,780, No. of Speeds 1, Voltage 460V AC, Full Load Amps 390 A, 449T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B
graingerSKU: 19RT05, mscSKU: , zoro_no: G9827955, mongo_id: 65bbe6d03aaddbd5a90560a7

Web Price

$61,471.24 / each

Qty

Product Details

CC Number CC029A

Conduit Box Location Exterior

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 449T

Frame Material Cast Iron

Full Load Amps 390 A

Green Certification or Other Recognition NEMA Premium Rated

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Hazardous Location Class 1 C,D / 2 F,G

Hazardous Location Division Division 1

HP_ 350

Hz_ 60 Hz

Ins. Class F

Length Less Shaft 46 1/2 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection T-Stat

Nameplate RPM 1,780

NEMA Design B

No. of Speeds 1

Nominal Efficiency 96.2 %

Overall Length 55 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 3 3/8 in

Shaft Length 8 1/2 in

Standards CSA Certified (LR50962), UL Listed (E87848)

Temp. Code T3C

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 689 lb
