Home / Hazardous Loc Mtr, 3 Ph, TEFC, 40 HP, T4

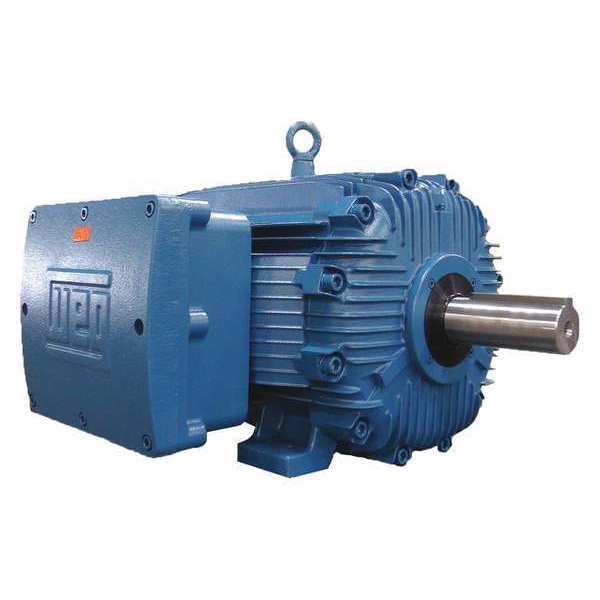

Hazardous Loc Mtr, 3 Ph, TEFC, 40 HP, T4

SKU
Brand Weg
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 40 HP, Nameplate RPM 3,555, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 91.5/45.7 A, 324TS Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T4, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
graingerSKU: 4YPW3, mscSKU: , zoro_no: G0514927, mongo_id: 65bbe7843aaddbd5a909da18

Web Price

$6,481.24 / each

Qty

Product Details

CC Number CC029A

Conduit Box Location Exterior

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 324TS

Frame Material Cast Iron

Full Load Amps 91.5/45.7 A

Green Certification or Other Recognition NEMA Premium Rated

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Hazardous Location Class 1 C,D / 2 F,G

Hazardous Location Division Division 1

HP_ 40

Hz_ 60 Hz

Ins. Class F

Length Less Shaft 24 3/8 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection T-Stat

Nameplate RPM 3,555

NEMA Design B

No. of Speeds 1

Nominal Efficiency 93.6 %

Overall Length 28 1/8 in

Package Quantity 1

Phase Three

RPM Range 3,001-3,600

Shaft Dia. 1 7/8 in

Shaft Length 3 3/4 in

Standards CSA Certified (LR50962), UL Listed (E87848)

Temp. Code T4

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 322 lb
