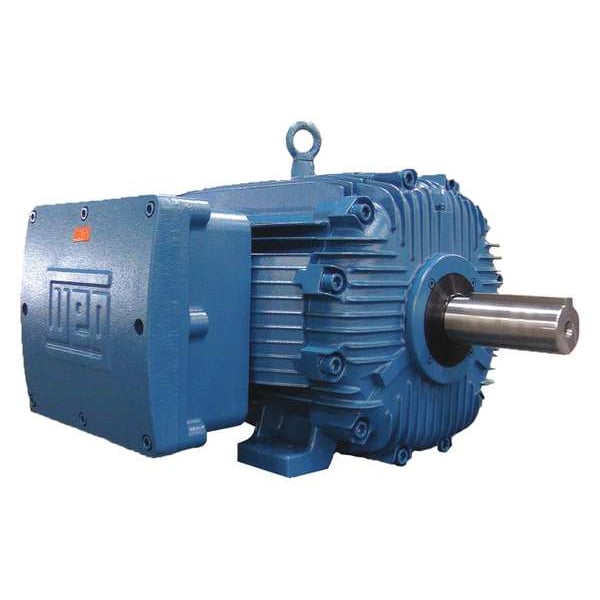

Hazardous Loc Mtr, 3 Ph, TEFC, 500 HP, T3C

SKU
Brand Weg
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 500 HP, Nameplate RPM 1,790, No. of Speeds 1, Voltage 460V AC, Full Load Amps 568 A, 586/7T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B
graingerSKU: 4YRA1, mscSKU: , zoro_no: G9811347, mongo_id: 65bbe87822d7a989a98f8085

Web Price

$79,614.43 / each

Qty

Product Details

CC Number CC029A

Conduit Box Location Exterior

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 586/7T

Frame Material Cast Iron

Full Load Amps 568 A

Green Certification or Other Recognition NEMA Premium Rated

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Hazardous Location Class 1 C,D / 2 F,G

Hazardous Location Division Division 1

HP_ 500

Hz_ 60 Hz

Ins. Class F

Length Less Shaft 49 3/4 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection T-Stat

Nameplate RPM 1,790

NEMA Design B

No. of Speeds 1

Nominal Efficiency 96.2 %

Overall Length 61 3/8 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 3 7/8 in

Shaft Length 11 5/8 in

Standards CSA Certified (LR50962), UL Listed (E87848)

Temp. Code T3C

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 126 lb
