Home / Pump Mtr, 3-Ph, 3hp, 1760,208-230/460,182JP

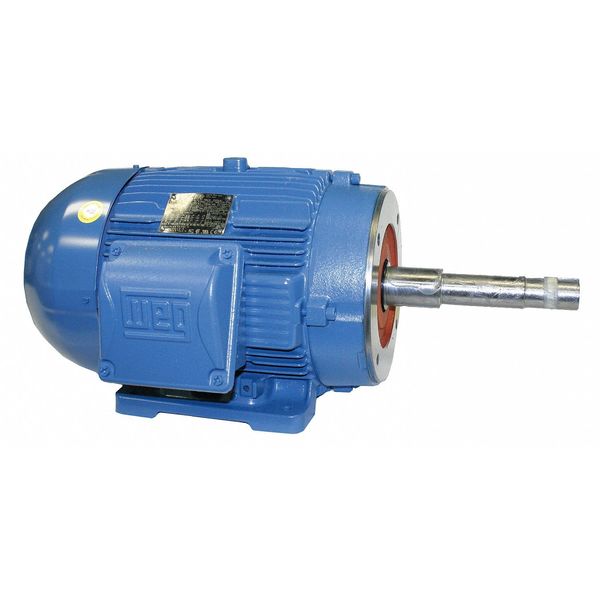

Pump Mtr, 3-Ph, 3hp, 1760,208-230/460,182JP

Pump Mtr, 3-Ph, 3hp, 1760,208-230/460,182JP

  • Weg
  • Pumps
  • Close-Coupled Pump Motor, Body Dia. 9.3 in, Bolt Circle Dia. 5 7/8 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182JP, Hz 60, Full Load Amps 8.5-7.7/3.8, Height 9 3/8 in, HP 3 hp, HP @ 50Hz 3, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 13 1/8 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase

    graingerSKU: 6FJY5, mscSKU: , zoro_no: G3991951, mongo_id: 65bbe74f3aaddbd5a90880f4

Web Price
$1,188.74 / each
Qty

Product Details

Industrial and Commercial Water Pumping, Processing, Transferring and Circulating Pumps
9.3 in
5 7/8 in
CC029A
Exterior
F1
Multiple
Continuous
Continuous
182JP
Cast Iron
8.5-7.7/3.8
NEMA Premium(R) Rated
9 3/8 in
3
3 hp
60
F
Yes
1000:1
13 1/8 in
3 yr
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Face/Base
1.25
JP Threaded
CW/CCW
Close-Coupled Pump
None
1,760
B
1
89.5 %
20 1/2 in
1
Three
Regreasable Bearings
1,445
1,701-1,800
1.25
7/8 in
0.874
7 3/8 in
Carbon Steel
JP Threaded
CSA (LR38324), CSA (LR50962), UL (E104590)
No
Yes
208-230/460V AC
380/400/415
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
95 lb
