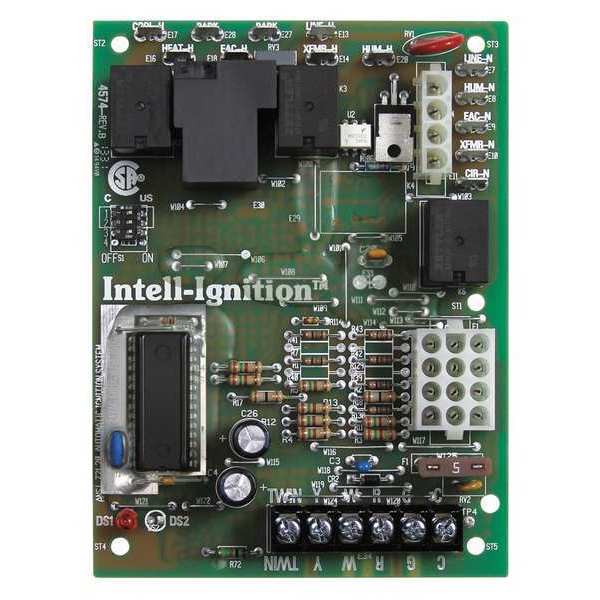

Furnace Board, 25VAC, For Carrier Systems

SKU
Brand White-Rodgers
Categories
Description Furnace Control Board, Replacement Type OEM, Board Type Integrated, Compatible with Brand Trane, White-Rodgers, OEM Replacement Part Number 50A65-474, 50A65-475, 50A65-476, 50A65-5165, CNT03076, CNT03798, CNT05164, CNT05165, D341213P01, D341396P01, D341396P03, D341396P04, D341396P05, Control Voltage 25V, Input Voltage 25V AC, Items Controlled Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers, Product Type Furnace Control Board, Overall Height 5 7/8 in, Overall Width 4 3/8 in
graingerSKU: 38XJ63, mscSKU: , zoro_no: G0070485, mongo_id: 65bbe82222d7a989a98dcaad

Web Price

$162.49 / each

Qty

Product Details

Board Type Integrated

Compatible Blower Motor Type Permanent Split Capacitor

Compatible Inducer Motor Type Permanent Split Capacitor

Compatible with Brand Trane, White-Rodgers

Connection Interface Type Spade Terminal

Control Mounting Type Standoff

Control Voltage 25V

Control Volts 25 V

Cool Blower Off Delay Setting 80 sec

Cool Blower On Delay Setting 2 sec

Country of Origin (subject to change) Mexico

For Use With Trane Furnace Systems

Furnace Control Functions Cool, Heat

Heat Blower Off Delay Setting 60 sec, 100 sec, 140 sec, 180 sec

Heat Blower On Delay Setting 45 sec

Igniter Voltage 80V AC

Ignition Type Hot Surface Igniter

Includes Wiring Adapter

Input Voltage 25V AC

Items Controlled Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers

Maximum Operating Temperature 175 Degrees F

Maximum Relative Humidity 93 %

Minimum Operating Temperature -40 Degrees F

Minimum Relative Humidity 5 %

Number of Speed Taps 2

Number of Stages 1

OEM Replacement Part Number 50A65-474, 50A65-475, 50A65-476, 50A65-5165, CNT03076, CNT03798, CNT05164, CNT05165, D341213P01, D341396P01, D341396P03, D341396P04, D341396P05

Overall Depth 1 1/4 in

Overall Height 5 7/8 in

Overall Width 4 3/8 in

Package Quantity 1

Product Type Furnace Control Board

Replacement Type OEM

Replaces Trane Mfr. No. CNT03076, CNT03098, CNT05164, CNT05165, D341213P01, D341396P03, D341396P04, D3411396P05

Standards cCSAus

Terminal Designations C, R, W, Y G

Twinning Compatibility Twinning Compatible

Type OEM Replacement
