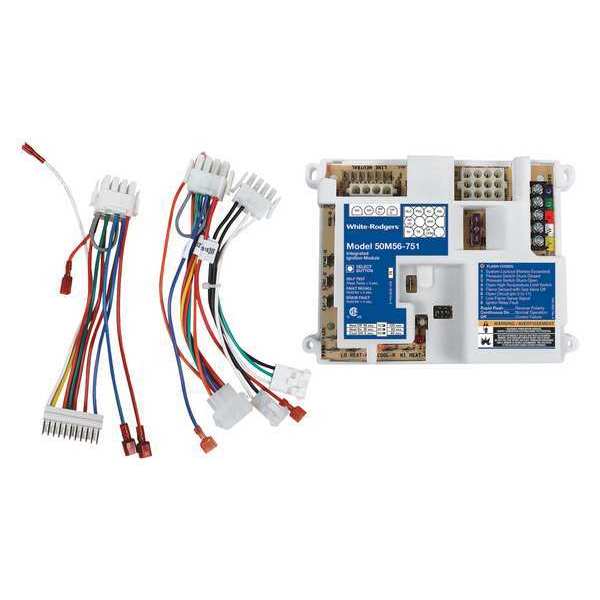

Furnace Board, 25VAC, With Wiring Adapter

SKU
Brand White-Rodgers
Categories
Description Furnace Control Board, Replacement Type OEM, Board Type Integrated, Compatible with Brand Carrier, ICP, White-Rodgers, OEM Replacement Part Number 1172550, 1183599, 325878-751, 50M56-751, CEPL13043B-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034, ICM282A, Control Voltage 25V, Input Voltage 25V AC, Items Controlled Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers, Product Type Furnace Control Board, Overall Height 7 in
graingerSKU: 38XJ62, mscSKU: , zoro_no: G0070491, mongo_id: 65bbe6063aaddbd5a90016ff

Web Price

$217.49 / each

Qty

Product Details

Board Type Integrated

Compatible Blower Motor Type Permanent Split Capacitor

Compatible Inducer Motor Type Permanent Split Capacitor

Compatible with Brand Carrier, ICP, White-Rodgers

Connection Interface Type Spade Terminal

Control Mounting Type Flush Mount

Control Voltage 25V

Control Volts 25 V

Cool Blower Off Delay Setting 90 sec

Cool Blower On Delay Setting 2 sec

Country of Origin (subject to change) Mexico

For Use With Carrier Furnace Systems

Furnace Control Functions Cool, High Heat, Low Heat

Heat Blower Off Delay Setting 1.33 sec

Heat Blower On Delay Setting 60 sec

Igniter Voltage 120V AC

Ignition Type Hot Surface Igniter

Includes Wiring Adapter

Input Voltage 25V AC

Items Controlled Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers

Maximum Operating Temperature 175 Degrees F

Maximum Relative Humidity 93 %

Minimum Operating Temperature -40 Degrees F

Minimum Relative Humidity 5 %

Number of Speed Taps 3

Number of Stages 1

OEM Replacement Part Number 1172550, 1183599, 325878-751, 50M56-751, CEPL13043B-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034, ICM282A

Overall Depth 1 1/4 in

Overall Height 7 in

Overall Width 5 1/4 in

Package Quantity 1

Product Type Furnace Control Board

Replacement Type OEM

Replaces Carrier Mfr. No. 325878-751, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034, ICM282A

Standards cCSAus

Terminal Designations C, DHUM, G, R, W, Y/Y2, Y1

Twinning Compatibility Twinning Compatible

Type OEM Replacement
