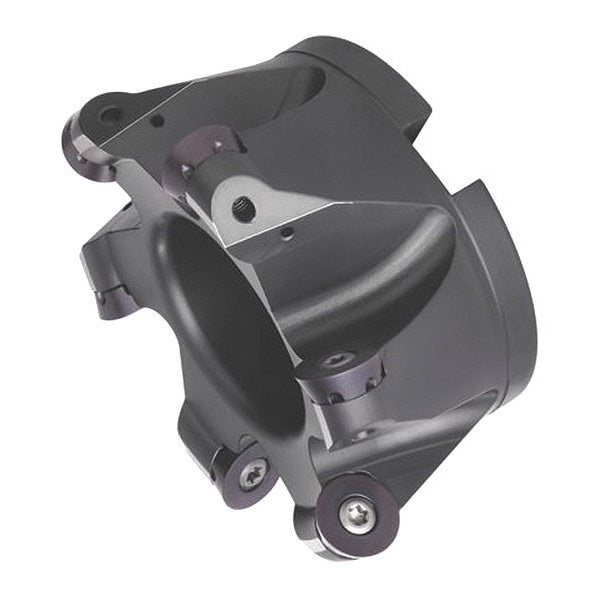

Indexable Face Mill, M100 Series, High Speed Steel, 6.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 50.00mm, Depth of Cut 6.00mm, Overall Length 40.00mm, ANSI Code 12391020000, Compatible Hardware Coolant Screw, Insert Screw M3.5x0.6 x 8.9 T15, Socket Head Screw DIN 912 M10, Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Web Price

$948.74 / each

Qty

Product Details

ANSI Code 12391020000

Arbor Dia. 22.00mm

Compatible Hardware Coolant Screw, Insert Screw M3.5x0.6 x 8.9 T15, Socket Head Screw DIN 912 M10, Torx Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) Czechia

Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 6.00mm

Features Anti-Rotation Feature for Top Security

Hub Outside Dia. 40.00mm

Insert Holding Type Screw

Insert Shape Round

Insert Size 1204

Insert Style RD

ISO Number 12391020000

Material - Machining High Speed Steel

Max. Cutting Dia. 50.00mm

Max. Speed 15,000 RPM
