Home / Indexable Face Mill, M100 Series, High Speed Steel, 8.00mm Depth of Cut

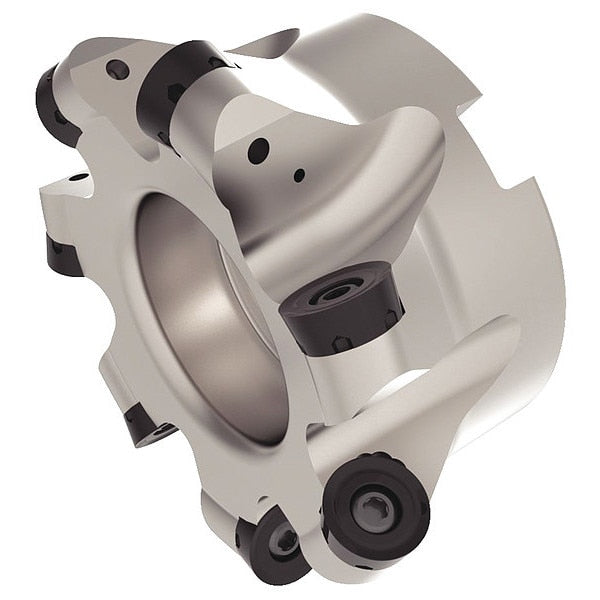

Indexable Face Mill, M100 Series, High Speed Steel, 8.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 100.00mm, Depth of Cut 8.00mm, Overall Length 50.00mm, ANSI Code 12391022200, Compatible Hardware Insert Screw M4.5x0.75 x 11 T20, Coolant Fed Non-Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
graingerSKU: 273NF6, mscSKU: , zoro_no: G3801610, mongo_id: 65bbe75b9a749db8227325c2

Web Price

$1,284.99 / each

Qty

Product Details

ANSI Code 12391022200

Arbor Dia. 32.00mm

Compatible Hardware Insert Screw M4.5x0.75 x 11 T20

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) Czechia

Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 8.00mm

Features Anti-Rotation Feature for Top Security

Hub Outside Dia. 78.00mm

Insert Holding Type Screw

Insert Shape Round

Insert Size 1606

Insert Style RC

ISO Number 12391022200

Material - Machining High Speed Steel

Max. Cutting Dia. 100.00mm

Max. Speed 9,000 RPM
