Home / Indexable Face Mill, M170 Series, High Speed Steel, 6.00mm Depth of Cut

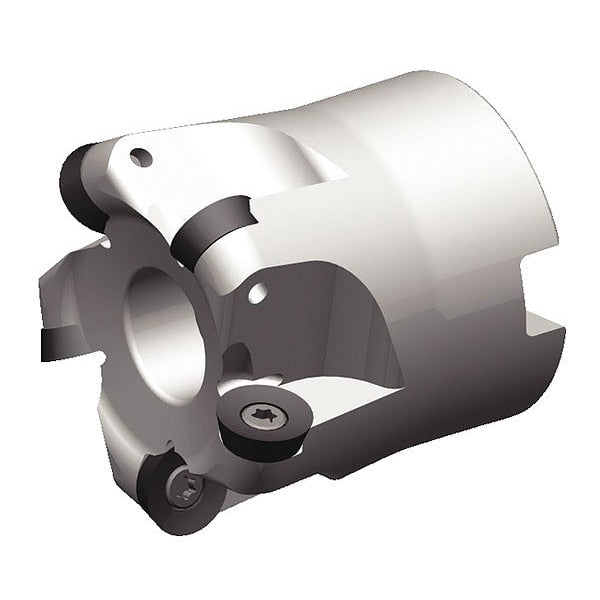

Indexable Face Mill, M170 Series, High Speed Steel, 6.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 66.00mm, Depth of Cut 6.00mm, Overall Length 50.00mm, ANSI Code M170D066Z06RD12, Compatible Hardware Heavy-Duty Clamp Screw, Insert Screw M3.5x0.6 x 7.7 T15, SHCS M12 1.75P x 30, SHCS with Coolant Groove, Torx Driver, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Web Price

$783.74 / each

Qty

Product Details

ANSI Code M170D066Z06RD12

Arbor Dia. 27.00mm

Compatible Hardware Heavy-Duty Clamp Screw, Insert Screw M3.5x0.6 x 7.7 T15, SHCS M12 1.75P x 30, SHCS with Coolant Groove, Torx Driver

Coolant Fed Coolant Through

Country of Origin (subject to change) Spain

Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 6.00mm

Features Designed for Maximum Performance, Ideally Suited for Die and Mold Manufacturing, Premium Nickel-Coated Bodies

Hub Outside Dia. 60.00mm

Insert Holding Type Top and Hole Clamping

Insert Shape Round

Insert Size 12T3

Insert Style RD.X

ISO Number M170D066Z06RD12

Material - Machining High Speed Steel

Max. Cutting Dia. 66.00mm

Max. Speed 6,030 RPM
