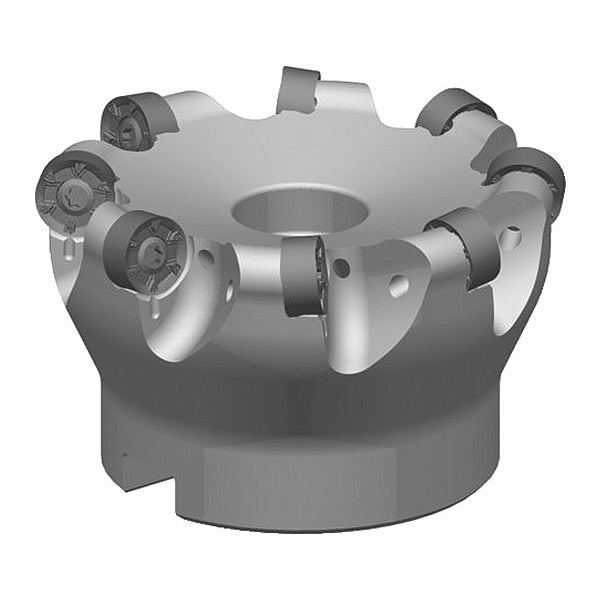

Indexable Face Mill, M200 Series, 0.1170 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Max. Cutting Dia. 2 in, Arbor Dia. 3/4 in, Depth of Cut 0.1170 in, ANSI Code M200D200Z05S075RN12, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Screw 3/8 In.-24 x 1 in LG Coolant G, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
graingerSKU: 274EE3, mscSKU: , zoro_no: G3798171, mongo_id: 65bbe98822d7a989a995f081

Web Price

$833.74 / each

Qty

Product Details

ANSI Code M200D200Z05S075RN12

Arbor Dia. 3/4 in

Compatible Hardware 3/8-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Screw 3/8-24 x 1 in LG Coolant G, Torx Wrench TX15

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.1170 in

Features 12 Cutting Edges, Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Pocketing and Profiling Capabilities

Hub Outside Dia. 1-3/4 in

Insert Holding Type Screw

Insert Shape Round

Insert Size 1204

Insert Style RN J

ISO Number M200D200Z05S075RN12
