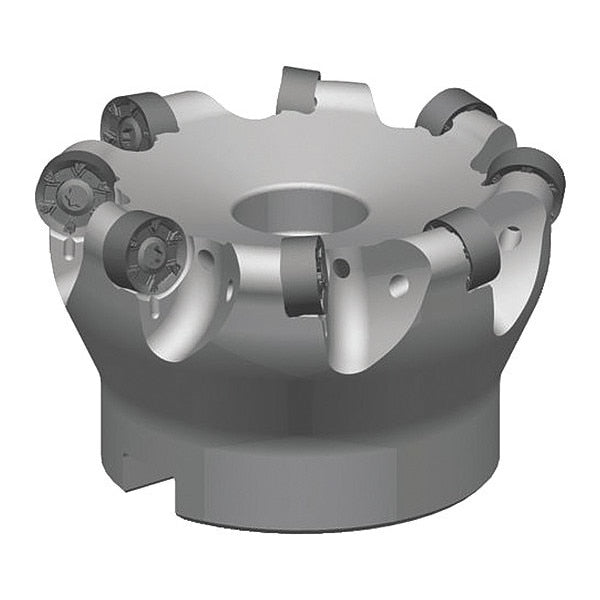

Indexable Face Mill, M200 Series, High Speed Steel, 0.1560 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 3 in, Depth of Cut 0.1560 in, Overall Length 2 in, ANSI Code M200D300Z07S100RN16, Compatible Hardware Anti-Seize Lubricant, DT20 Torx Screwdriver Tx20, Insert Screw M4.5x0.75 x 12 T20, Insert Screw M4.5x0.75 x 9.85 T, SHCS with Coolant Groove, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Web Price

$1,014.99 / each

Qty

Product Details

ANSI Code M200D300Z07S100RN16

Arbor Dia. 1

Compatible Hardware Anti-Seize Lubricant, DT20 Torx Screwdriver Tx20, Insert Screw M4.5x0.75 x 12 T20, Insert Screw M4.5x0.75 x 9.85 T, SHCS with Coolant Groove

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.1560 in

Features 12 Cutting Edges, Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Pocketing and Profiling Capabilities

Hub Outside Dia. 2.1890

Insert Holding Type Screw

Insert Shape Round

Insert Size 1605

Insert Style RN J M

ISO Number M200D300Z07S100RN16
