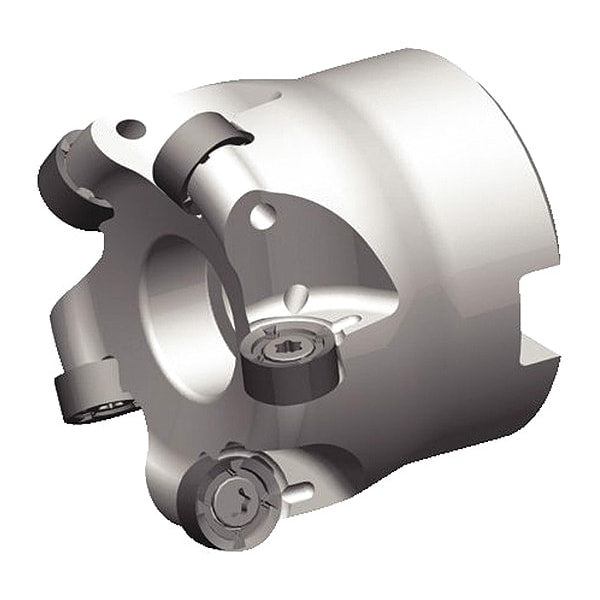

Indexable Face Mill, M200 Series, High Speed Steel, 0.2000 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 2 in, Depth of Cut 0.2000 in, Overall Length 2 in, ANSI Code M200D200Z06S075RN10, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Insert Screw M3.5x0.6 x 8.3 T15, Screw 3/8 In.-24 x 1 in LG Coolant G, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
graingerSKU: , mscSKU: , zoro_no: G3801750, mongo_id: 65bbe6913aaddbd5a903c021

Web Price

$824.99 / each

Qty

Product Details

ANSI Code M200D200Z06S075RN10

Arbor Dia. 3/4

Compatible Hardware 3/8-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Insert Screw M3.5x0.6 x 8.3 T15, Screw 3/8-24 x 1 in LG Coolant G, Torx Wrench TX15

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.2000 in

Features Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Eight Cutting Edges, Pocketing and Profiling Capabilities

Hub Outside Dia. 1.6540

Insert Holding Type Screw

Insert Shape Round

Insert Size 10T3

Insert Style RN J M

ISO Number M200D200Z06S075RN10
