Home / Indexable Face Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut

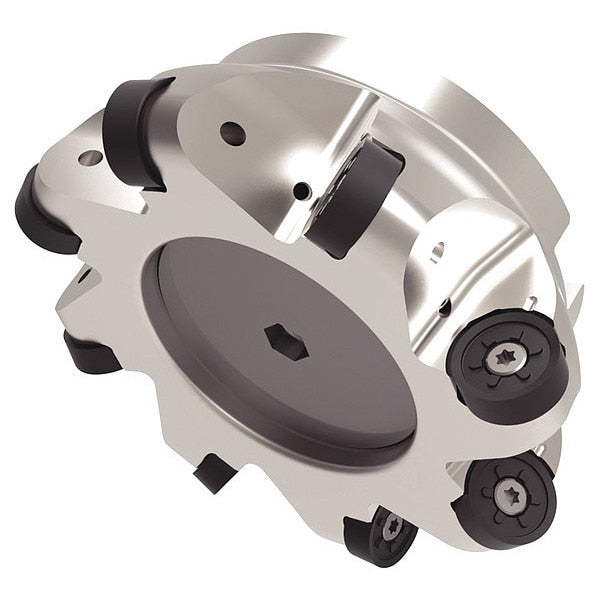

Indexable Face Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 3 in, Depth of Cut 0.3700 in, Overall Length 2 in, ANSI Code M200D300Z05S100RN64, Compatible Hardware 1/2 In.-20 UNF x 1 in Socket Head Cap Screw, Insert Screw M5x0.8 x 14 T20, Screw 1/2 In.-20 x 1 in LG Coolant GR, T Handle Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
graingerSKU: , mscSKU: , zoro_no: G3792203, mongo_id: 65bbe96322d7a989a9950a5e

Web Price

$1,236.24 / each

Qty

Product Details

ANSI Code M200D300Z05S100RN64

Arbor Dia. 1

Compatible Hardware 1/2-20 UNF x 1 in Socket Head Cap Screw, Insert Screw M5x0.8 x 14 T20, Screw 1/2-20 x 1 in LG Coolant GR, T Handle Torx Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.3700 in

Features 12 Cutting Edges, Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Excellent for Heavy Roughing and Semi-Finishing of all Materials, Suitable for High-Feed Face Milling Operations

Hub Outside Dia. 2.1880

Insert Holding Type Screw

Insert Shape Round

Insert Size 64

Insert Style RN J

ISO Number M200D300Z05S100RN64

Material - Machining High Speed Steel

Max. Cutting Dia. 3 in

Max. Speed 14,000 RPM

Number of Inserts 5

Overall Length 2 in

Package Quantity 1
