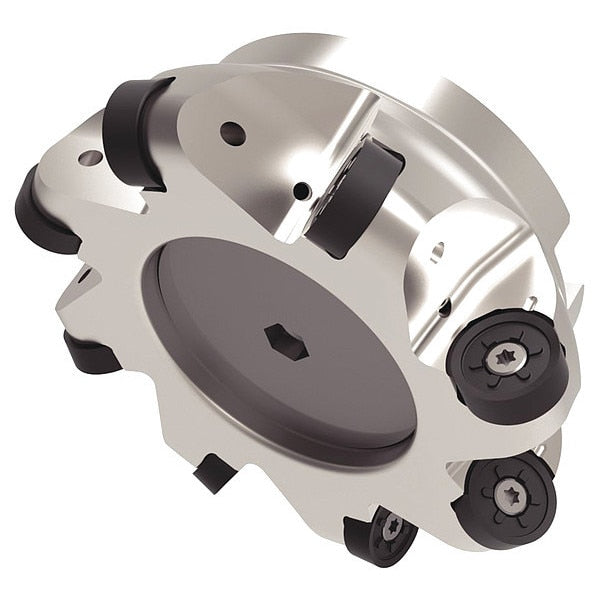

Indexable Face Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 4 in, Depth of Cut 0.3700 in, Overall Length 2 in, ANSI Code M200D400Z06S125RN64, Compatible Hardware 5/8 In.-18 LHCS with Cool Grooves x 1 in, Insert Screw M5x0.8 x 14 T20, Screw 5/8 In.-18 x 1-1/4 in, T Handle Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Web Price

$1,468.74 / each

Qty

Product Details

ANSI Code M200D400Z06S125RN64

Arbor Dia. 1-1/4

Compatible Hardware 5/8-18 LHCS with Cool Grooves x 1 in, Insert Screw M5x0.8 x 14 T20, Screw 5/8-18 x 1-1/4 in, T Handle Torx Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.3700 in

Features 12 Cutting Edges, Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Excellent for Heavy Roughing and Semi-Finishing of all Materials, Suitable for High-Feed Face Milling Operations

Hub Outside Dia. 2-7/8

Insert Holding Type Screw

Insert Shape Round

Insert Size 64

Insert Style RN J

ISO Number M200D400Z06S125RN64

Material - Machining High Speed Steel

Max. Cutting Dia. 4 in

Max. Speed 11,600 RPM

Number of Inserts 6

Overall Length 2 in

Package Quantity 1
