Home / Indexable Face Mill, M200 Series, High Speed Steel, 3.97mm Depth of Cut

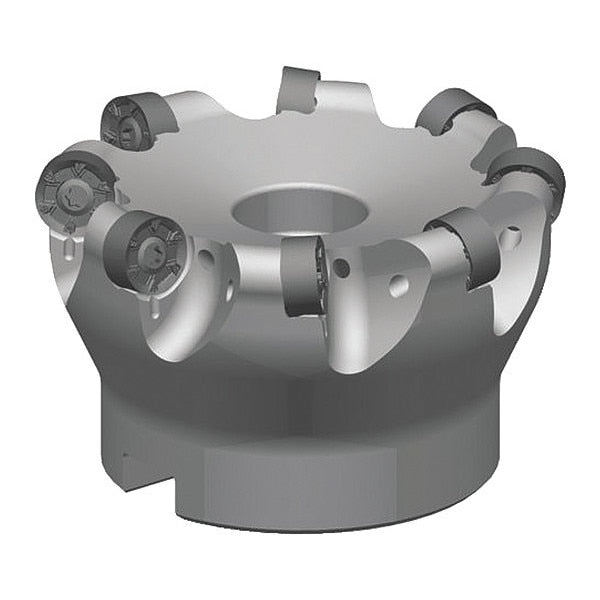

Indexable Face Mill, M200 Series, High Speed Steel, 3.97mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 52.00mm, Depth of Cut 3.97mm, Overall Length 50.00mm, ANSI Code M200D52Z04RN16, Compatible Hardware 10mm x 30mm Socket Head Cap Screw, Anti-Seize Lubricant, DT20 Torx Screwdriver Tx20, Insert Screw M4.5x0.75 x 14 T20, Socket Head Cap Screw with Coolant, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Web Price

$1,104.99 / each

Qty

Product Details

ANSI Code M200D52Z04RN16

Arbor Dia. 22.00mm

Compatible Hardware 10mm x 30mm Socket Head Cap Screw, Anti-Seize Lubricant, DT20 Torx Screwdriver Tx20, Insert Screw M4.5x0.75 x 14 T20, Socket Head Cap Screw with Coolant

Coolant Fed Coolant Through

Country of Origin (subject to change) China

Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 3.97mm

Features 12 Cutting Edges, Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Pocketing and Profiling Capabilities

Hub Outside Dia. 42.00mm

Insert Holding Type Screw

Insert Shape Round

Insert Size 1605

Insert Style RN J M

ISO Number M200D52Z04RN16
