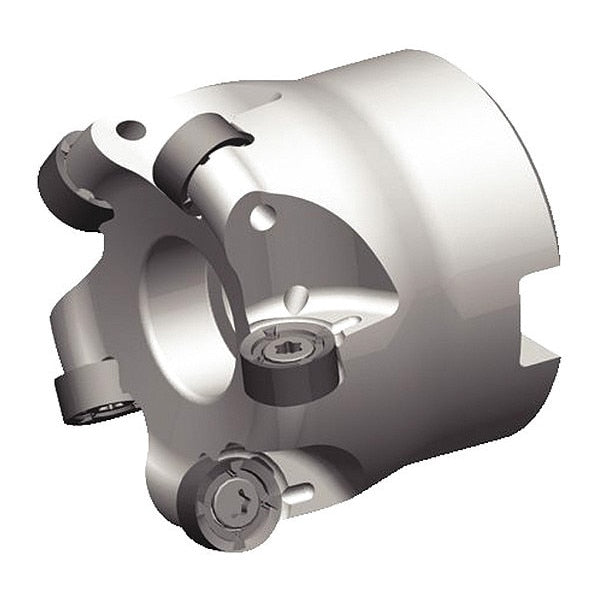

Indexable Face Mill, M200 Series, High Speed Steel, 5.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 52.00mm, Depth of Cut 5.00mm, Overall Length 50.00mm, ANSI Code M200D52Z06RN10, Compatible Hardware 10mm x 30mm Socket Head Cap Screw, Anti-Seize Lubricant, Insert Screw M3.5x0.6 x 8.3 T15, Socket Head Cap Screw with Coolant, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
graingerSKU: , mscSKU: , zoro_no: G3797453, mongo_id: 65bbe6d53aaddbd5a9058b51

Web Price

$1,082.49 / each

Qty

Product Details

ANSI Code M200D52Z06RN10

Arbor Dia. 22.00mm

Compatible Hardware 10mm x 30mm Socket Head Cap Screw, Anti-Seize Lubricant, Insert Screw M3.5x0.6 x 8.3 T15, Socket Head Cap Screw with Coolant, Torx Wrench TX15

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 5.00mm

Features Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Eight Cutting Edges, Pocketing and Profiling Capabilities

Hub Outside Dia. 49.00mm

Insert Holding Type Screw

Insert Shape Round

Insert Size 10T3

Insert Style RN J M

ISO Number M200D52Z06RN10
