Home / Indexable Face Mill, M370 Series, 0.0780 in Depth of Cut

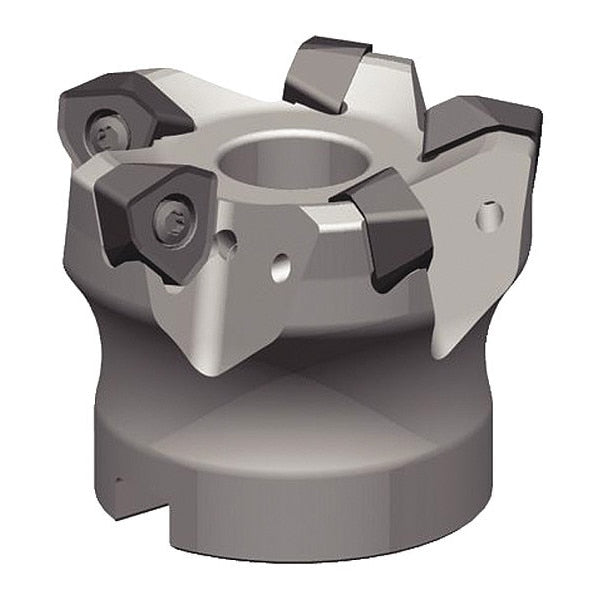

Indexable Face Mill, M370 Series, 0.0780 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Max. Cutting Dia. 2-1/2 in, Arbor Dia. 3/4 in, Depth of Cut 0.0780 in, ANSI Code M370D250Z05S075WO12, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 11.5 IP15, Screw 3/8 In.-24 x 1 in LG Coolant G, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End

Web Price

$1,054.99 / each

Qty

Product Details

ANSI Code M370D250Z05S075WO12

Arbor Dia. 3/4 in

Compatible Hardware 3/8-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 11.5 IP15, Screw 3/8-24 x 1 in LG Coolant G, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.0780 in

Features Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges

Hub Outside Dia. 1-3/4 in

Insert Holding Type Screw

Insert Shape 60 Degrees Triangle

Insert Size 120713

Insert Style WOEJ R

ISO Number M370D250Z05S075WO12

Material High Speed Steel

Material - Machining High Speed Steel

Max. Cutting Dia. 2-1/2 in
