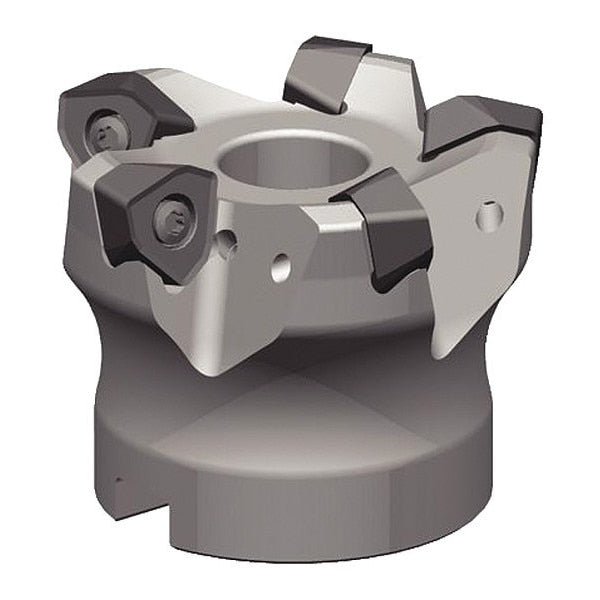

Indexable Face Mill, M370 Series, 0.0780 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Max. Cutting Dia. 3 in, Arbor Dia. 1-1/4 in, Depth of Cut 0.0780 in, ANSI Code M370D300Z05S125WO12, Compatible Hardware 5/8 In.-18 LHCS with Cool Grooves x 1 in, Insert Screw M4x0.7 x 11.5 IP15, Screw 5/8 In.-18 x 1-1/4 in, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
graingerSKU: , mscSKU: , zoro_no: G3781335, mongo_id: 65bbe9d322d7a989a997bd55

Web Price

$1,053.74 / each

Qty

Product Details

ANSI Code M370D300Z05S125WO12

Arbor Dia. 1-1/4 in

Compatible Hardware 5/8-18 LHCS with Cool Grooves x 1 in, Insert Screw M4x0.7 x 11.5 IP15, Screw 5/8-18 x 1-1/4 in, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.0780 in

Features Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges

Hub Outside Dia. 2-3/4 in

Insert Holding Type Screw

Insert Shape 60 Degrees Triangle

Insert Size 120713

Insert Style WOEJ R

ISO Number M370D300Z05S125WO12

Material High Speed Steel

Material - Machining High Speed Steel

Max. Cutting Dia. 3 in
