Home / Indexable Face Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut

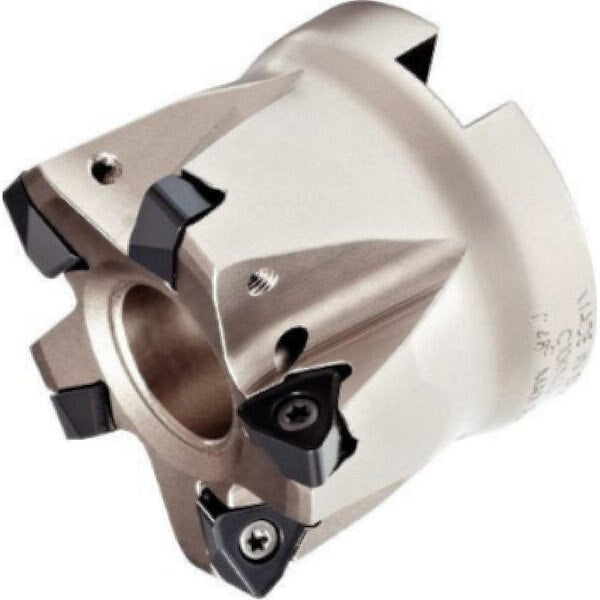

Indexable Face Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 52.00mm, Depth of Cut 1.25mm, Overall Length 50.00mm, ANSI Code M370D052Z06WO08, Compatible Hardware Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
graingerSKU: , mscSKU: , zoro_no: G3796799, mongo_id: 65bbe5c33aaddbd5a9fe5cf7

Web Price

$918.74 / each

Qty

Product Details

ANSI Code M370D052Z06WO08

Arbor Dia. 22.00mm

Compatible Hardware Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9

Coolant Fed Coolant Through

Country of Origin (subject to change) India

Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 1.25mm

Features Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges

Hub Outside Dia. 44.00mm

Insert Holding Type Screw

Insert Shape 80 Degrees Trigon

Insert Size 80412

Insert Style WOEJ SRMH

ISO Number M370D052Z06WO08

Material - Machining High Speed Steel

Max. Cutting Dia. 52.00mm

Max. Speed 28,600 RPM
