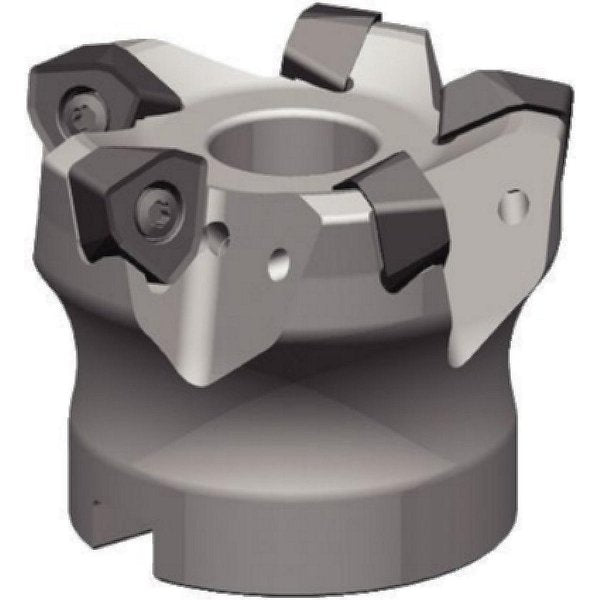

Indexable Face Mill, M370 Series, High Speed Steel, 2.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 50.00mm, Depth of Cut 2.00mm, Overall Length 50.00mm, ANSI Code M370D50Z04WO12, Compatible Hardware Coolant Screw, Insert Screw M4x0.7 x 11.5 IP15, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End

Web Price

$881.24 / each

Qty

Product Details

ANSI Code M370D50Z04WO12

Arbor Dia. 22.00mm

Compatible Hardware Coolant Screw, Insert Screw M4x0.7 x 11.5 IP15, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 2.00mm

Features Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges

Hub Outside Dia. 42.00mm

Insert Holding Type Screw

Insert Size 120713

Insert Style WOEJ R

ISO Number M370D50Z04WO12

Material - Machining High Speed Steel

Max. Cutting Dia. 50.00mm

Max. Speed 19,530 RPM

Number of Inserts 4
