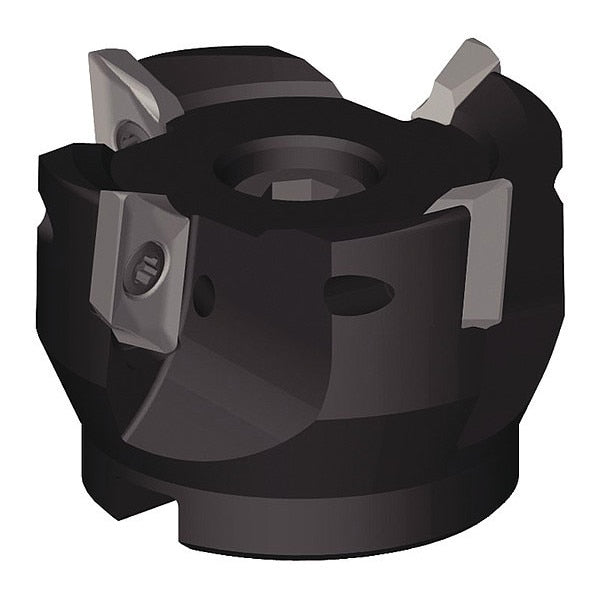

Indexable Face Mill, VHSC Series, 5/8 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Max. Cutting Dia. 2 in, Arbor Dia. 3/4 in, Depth of Cut 5/8 in, ANSI Code VHSC200Z03S075XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Inclined Square End Mill, Pocketing, Ramping: Blank, Side and Face Milling
graingerSKU: , mscSKU: , zoro_no: G3793210, mongo_id: 65bbe7193aaddbd5a9075591

Web Price

$801.24 / each

Qty

Product Details

ANSI Code VHSC200Z03S075XD16

Arbor Dia. 3/4 in

Compatible Hardware DP5009A, Torx Plus Drive Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Helical Milling, Inclined Square End Mill, Pocketing, Ramping: Blank, Side and Face Milling

Cutting Direction Right Hand

Depth of Cut 5/8 in

Features Consistant Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525inÃÂ³/min (8600cmÃÂ³/min) MRR at Machining Aluminum Components

Hub Outside Dia. 1.7717 in

Insert Holding Type Screw

Insert Shape 89.27 Degrees Parallelogram

Insert Size 16M508

Insert Style XDET FRALP

ISO Number VHSC200Z03S075XD16

Material High Speed Steel

Material - Machining High Speed Steel

Max. Cutting Dia. 2 in

Max. Speed 30,000 RPM

Number of Flutes 3

Number of Inserts 3
