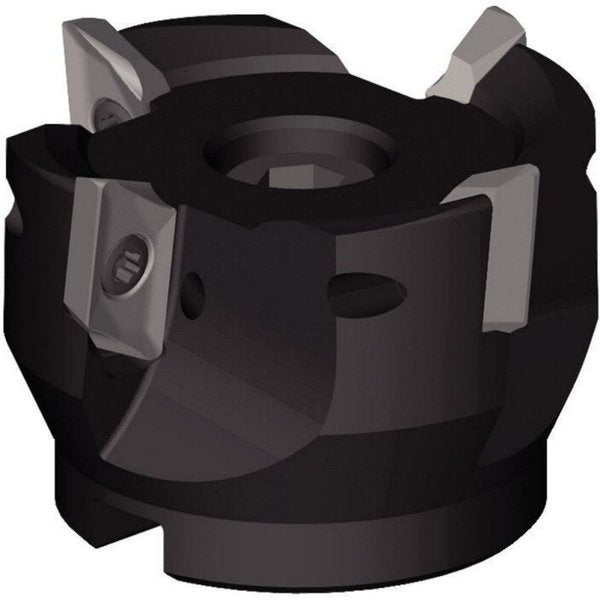

Indexable Face Mill, VHSC Series, High Speed Steel, 16.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 16.00mm, Overall Length 45.00mm, ANSI Code VHSC063Z04S22XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Inclined Square End Mill, Pocketing, Ramping: Blank, Side and Face Milling
graingerSKU: 274LK7, mscSKU: , zoro_no: G3792264, mongo_id: 65bbe8c922d7a989a99173d9

Web Price

$877.49 / each

Qty

Product Details

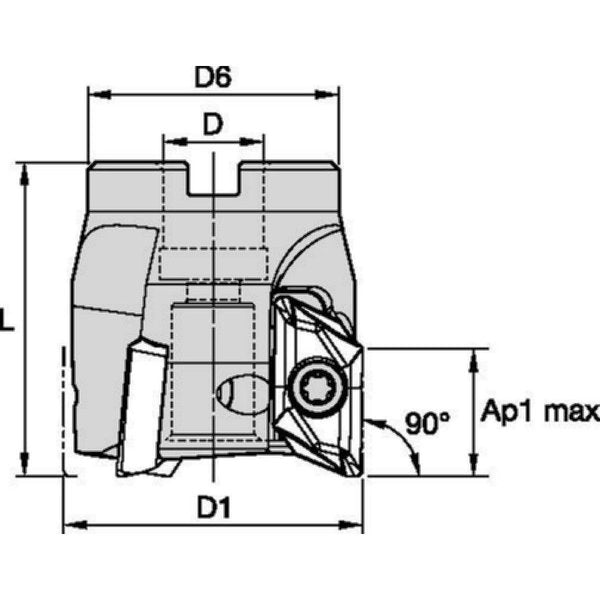

ANSI Code VHSC063Z04S22XD16

Arbor Dia. 22.00mm

Compatible Hardware DP5009A, Torx Plus Drive Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application Face Milling, Helical Milling, Inclined Square End Mill, Pocketing, Ramping: Blank, Side and Face Milling

Cutting Direction Right Hand

Depth of Cut 16.00mm

Features Consistant Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525inÃÂ³/min (8600cmÃÂ³/min) MRR at Machining Aluminum Components

Hub Outside Dia. 50.00mm

Insert Holding Type Screw

Insert Shape 89.27 Degrees Parallelogram

Insert Size 16M508

Insert Style XDET FRALP

ISO Number VHSC063Z04S22XD16

Material - Machining High Speed Steel

Max. Speed 26,000 RPM

Number of Inserts 4

Overall Length 45.00mm

Package Quantity 1

Rake -6.3 Degrees Radial, 7 Degrees Axial
