Home / Indexable Face Mill, VSM11 Series, 11.32mm Depth of Cut

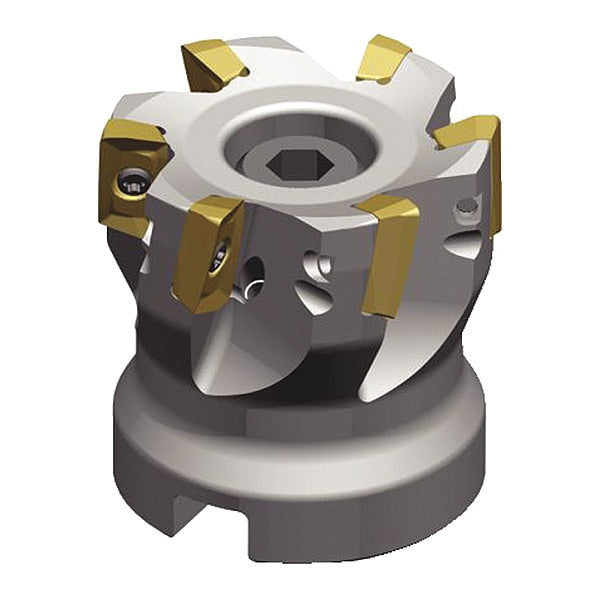

Indexable Face Mill, VSM11 Series, 11.32mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 3/4 in, Depth of Cut 11.32mm, ANSI Code VSM11D250Z09S075XD11, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Insert Screw M2.5x0.45 x 5.9 T8, Screw 3/8 In.-24 x 1 in LG Coolant G, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274FT1, mscSKU: , zoro_no: G3802082, mongo_id: 65bbe7b23aaddbd5a90aeb20

Web Price

$923.74 / each

Qty

Product Details

ANSI Code VSM11D250Z09S075XD11

Arbor Dia. 3/4 in

Compatible Hardware 3/8-24 x 1 in Socket Head Cap Screw, Insert Screw M2.5x0.45 x 5.9 T8, Screw 3/8-24 x 1 in LG Coolant G, Torx Wrench TX8

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 11.32mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 0 Degrees Capability

Hub Outside Dia. 1-3/4 in

Insert Holding Type Screw

Insert Shape 75 Degrees Parallelogram

Insert Size 110408

Insert Style XD.T PD R

ISO Number VSM11D250Z09S075XD11

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 17,400 RPM

Number of Flutes 9

Number of Inserts 9

Overall Length 40.00mm
