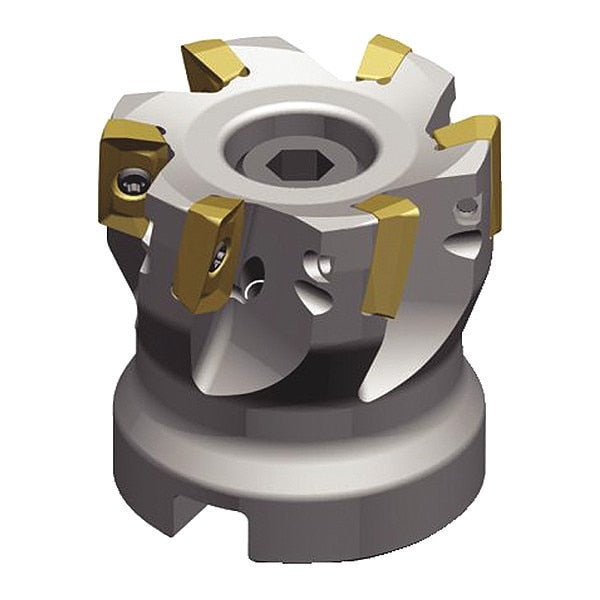

Indexable Face Mill, VSM11 Series, 11.32mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 1-1/2 in, Depth of Cut 11.32mm, ANSI Code VSM11D400Z09S150XD11, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274FT3, mscSKU: , zoro_no: G3801434, mongo_id: 65bbe75b9a749db8227325ce

Web Price

$1,126.24 / each

Qty

Product Details

ANSI Code VSM11D400Z09S150XD11

Arbor Dia. 1-1/2 in

Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 11.32mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 0 Degrees Capability

Hub Outside Dia. 85.85mm

Insert Holding Type Screw

Insert Shape 75 Degrees Parallelogram

Insert Size 110408

Insert Style XD.T PD R

ISO Number VSM11D400Z09S150XD11

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 13,500 RPM

Number of Flutes 9

Number of Inserts 9

Overall Length 2 in
