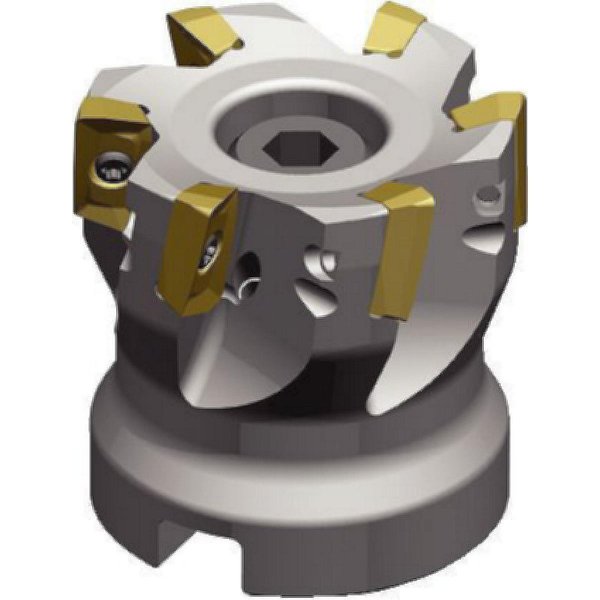

Indexable Face Mill, VSM11 Series, High Speed Steel, 11.32mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 11.32mm, Overall Length 50.00mm, ANSI Code VSM11D100Z09S032XD11, Compatible Hardware Coolant Screw Assembly M16, Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274FR4, mscSKU: , zoro_no: G3799039, mongo_id: 65bbe5c33aaddbd5a9fe5d02

Web Price

$1,188.74 / each

Qty

Product Details

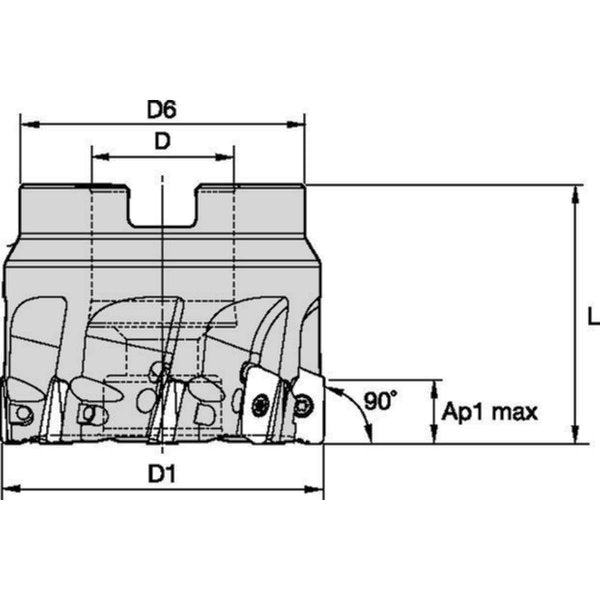

ANSI Code VSM11D100Z09S032XD11

Arbor Dia. 32.00mm

Compatible Hardware Coolant Screw Assembly M16, Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 11.32mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability

Hub Outside Dia. 80.00mm

Insert Holding Type Screw

Insert Shape 75 Degrees Parallelogram

Insert Size 110408

Insert Style XD.T PD R

ISO Number VSM11D100Z09S032XD11

Material - Machining High Speed Steel

Max. Speed 13,600 RPM

Number of Inserts 9

Overall Length 50.00mm

Package Quantity 1

Rake -3.15 Degrees Radial, 12 Degrees Axial
