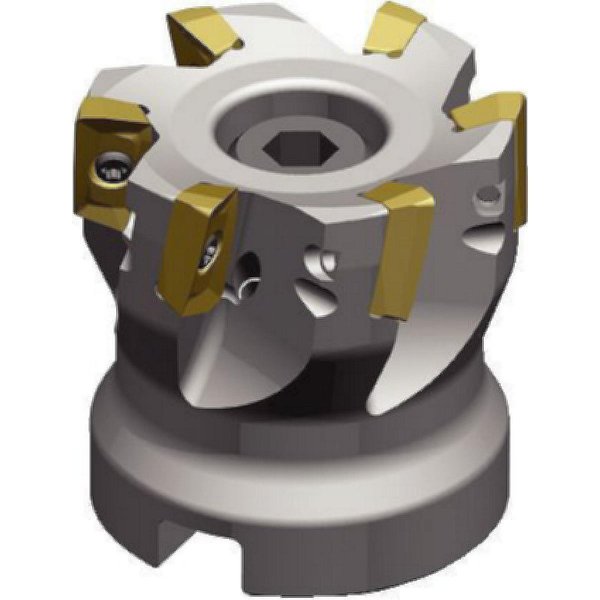

Indexable Face Mill, VSM11 Series, High Speed Steel, 11.38mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 11.38mm, Overall Length 40.00mm, ANSI Code VSM11D040Z04S016XD11, Compatible Hardware Cylindrical Screw DIN912 M8x25, Insert Screw M2.5x0.45 x 5.9 T8, SHCS with Coolant Groove, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274FP7, mscSKU: , zoro_no: G3784661, mongo_id: 65bbedfe526e052139ae2f66

Web Price

$611.24 / each

Qty

Product Details

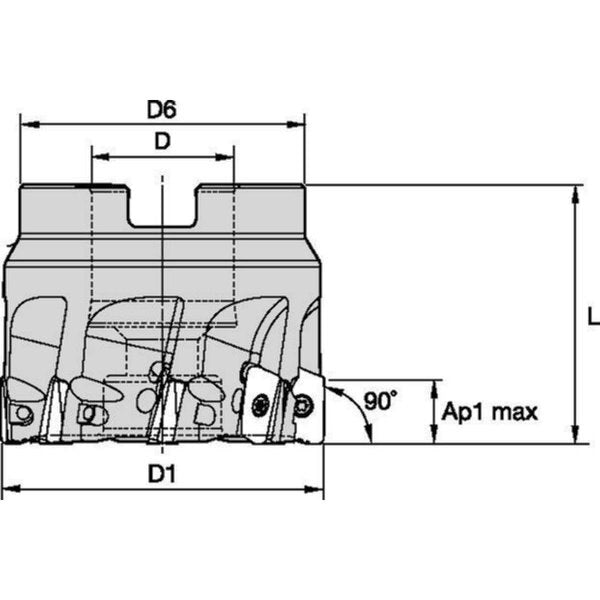

ANSI Code VSM11D040Z04S016XD11

Arbor Dia. 16.00mm

Compatible Hardware Cylindrical Screw DIN912 M8x25, Insert Screw M2.5x0.45 x 5.9 T8, SHCS with Coolant Groove, Torx Wrench TX8

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 11.38mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability

Hub Outside Dia. 37.00mm

Insert Holding Type Screw

Insert Shape 75 Degrees Parallelogram

Insert Size 110408

Insert Style XD.T PD R

ISO Number VSM11D040Z04S016XD11

Material - Machining High Speed Steel

Max. Speed 22,600 RPM

Number of Inserts 4

Overall Length 40.00mm

Package Quantity 1

Rake -5.717 Degrees Radial, 11 Degrees Axial
