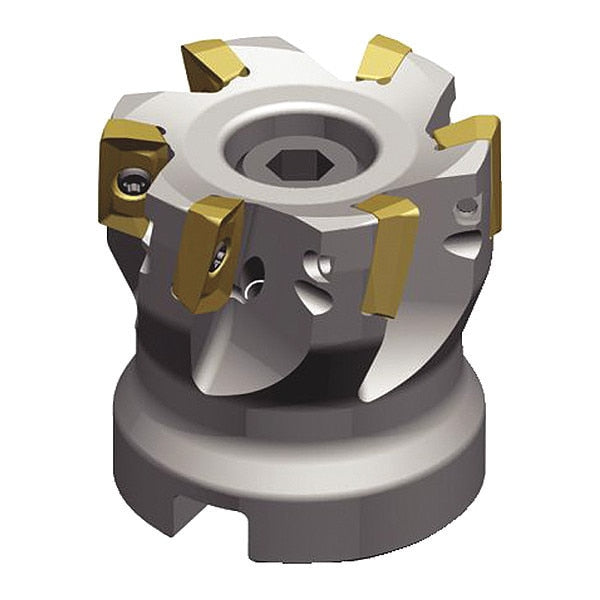

Indexable Face Mill, VSM17 Series, 15.80mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 1-1/2 in, Depth of Cut 15.80mm, ANSI Code VSM17D400Z08S150XD17, Compatible Hardware Coolant Screw Assembly, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HU4, mscSKU: , zoro_no: G3785194, mongo_id: 65bbe8c922d7a989a99173d2

Web Price

$1,296.24 / each

Qty

Product Details

ANSI Code VSM17D400Z08S150XD17

Arbor Dia. 1-1/2 in

Compatible Hardware Coolant Screw Assembly, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 15.80mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 0 Degrees Capability

Hub Outside Dia. 85.70mm

Insert Holding Type Screw

Insert Size 1704

Insert Style XD.T PE R

ISO Number VSM17D400Z08S150XD17

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 17,100 RPM

Number of Flutes 8

Number of Inserts 8

Overall Length 2 in

Package Quantity 1
