Home / Indexable Face Mill, VSM17 Series, 15.90mm Depth of Cut

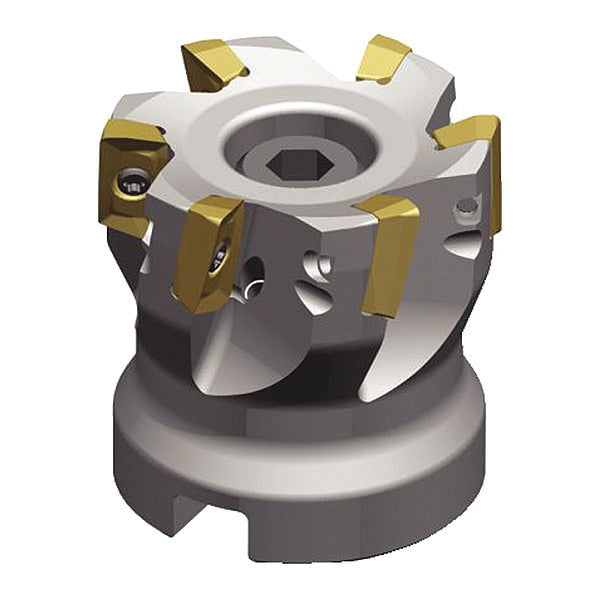

Indexable Face Mill, VSM17 Series, 15.90mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 1 in, Depth of Cut 15.90mm, ANSI Code VSM17D300Z07S100XD17, Compatible Hardware 1/2 In.-20 UNF x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 8.4 T15, Screw 1/2 In.-20 x 1 in LG Coolant GR, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HV4, mscSKU: , zoro_no: G3792833, mongo_id: 65bbe7da9a749db82275d578

Web Price

$1,131.24 / each

Qty

Product Details

ANSI Code VSM17D300Z07S100XD17

Arbor Dia. 1 in

Compatible Hardware 1/2-20 UNF x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 8.4 T15, Screw 1/2-20 x 1 in LG Coolant GR, Torx Wrench TX15

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 15.90mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 0 Degrees Capability

Hub Outside Dia. 55.60mm

Insert Holding Type Screw

Insert Size 1704

Insert Style XD.T PE R

ISO Number VSM17D300Z07S100XD17

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 20,100 RPM

Number of Flutes 7

Number of Inserts 7

Overall Length 1-3/4 in

Package Quantity 1
