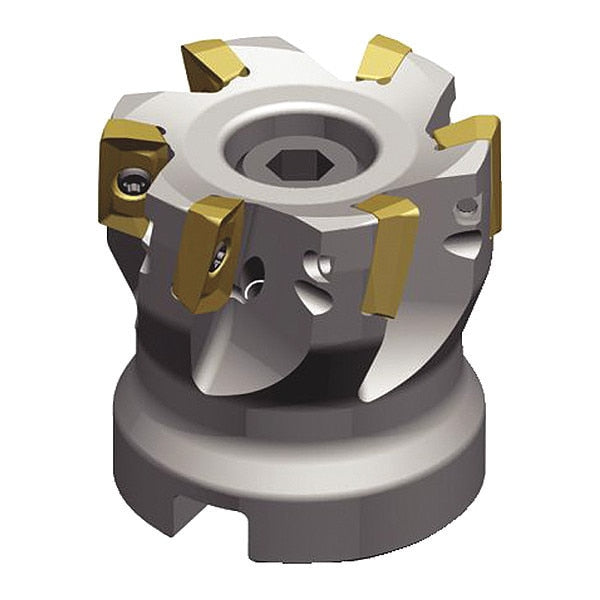

Indexable Face Mill, VSM17 Series, 16.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 3/4 in, Depth of Cut 16.00mm, ANSI Code VSM17D250Z06S075XD17, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 8.4 T15, Screw 3/8 In.-24 x 1 in LG Coolant G, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HV5, mscSKU: , zoro_no: G3793752, mongo_id: 65bbe7b23aaddbd5a90aeb21

Web Price

$1,097.49 / each

Qty

Product Details

ANSI Code VSM17D250Z06S075XD17

Arbor Dia. 3/4 in

Compatible Hardware 3/8-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 8.4 T15, Screw 3/8-24 x 1 in LG Coolant G, Torx Wrench TX15

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 16.00mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 0 Degrees Capability

Hub Outside Dia. 1-3/4 in

Insert Holding Type Screw

Insert Size 1704

Insert Style XD.T PE R

ISO Number VSM17D250Z06S075XD17

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 22,300 RPM

Number of Flutes 6

Number of Inserts 6

Overall Length 40.00mm

Package Quantity 1
