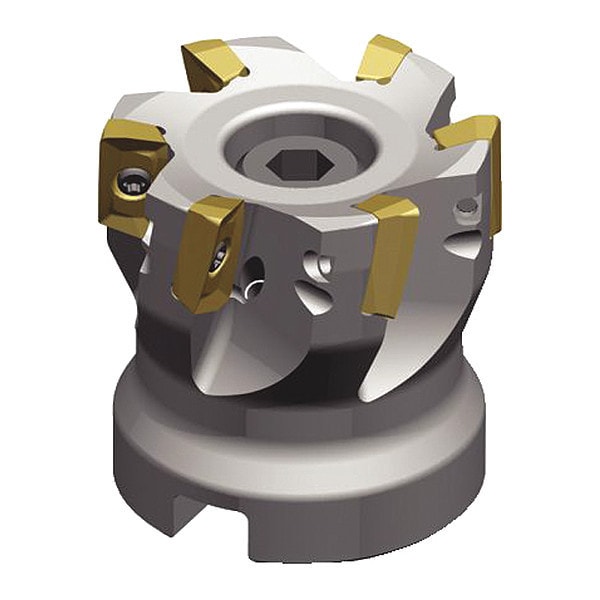

Indexable Face Mill, VSM17 Series, 16.20mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 3/4 in, Depth of Cut 16.20mm, ANSI Code VSM17D150Z04S075XD17, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 8.4 T15, Screw 3/8 In.-24 x 1 in LG Coolant G, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HU0, mscSKU: , zoro_no: G3785623, mongo_id: 65bbe8ab22d7a989a9908f8d

Web Price

$718.74 / each

Qty

Product Details

ANSI Code VSM17D150Z04S075XD17

Arbor Dia. 3/4 in

Compatible Hardware 3/8-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 8.4 T15, Screw 3/8-24 x 1 in LG Coolant G, Torx Wrench TX15

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 16.20mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 0 Degrees Capability

Hub Outside Dia. 36.00mm

Insert Holding Type Screw

Insert Size 1704

Insert Style XD.T PE R

ISO Number VSM17D150Z04S075XD17

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 30,700 RPM

Number of Flutes 4

Number of Inserts 4

Overall Length 40.00mm

Package Quantity 1
