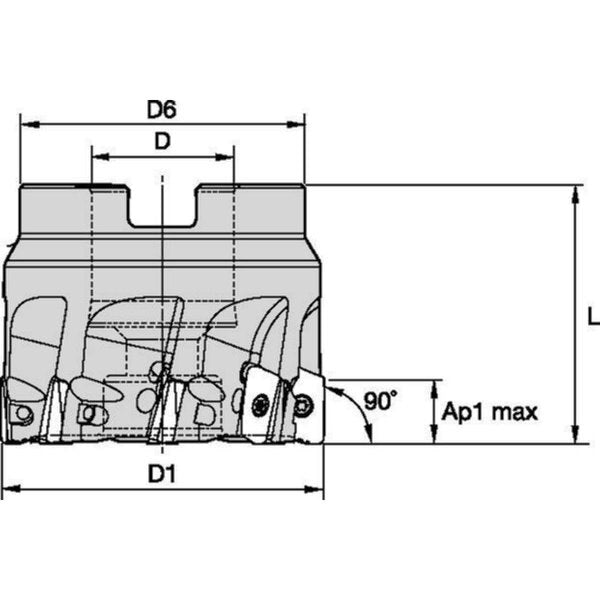

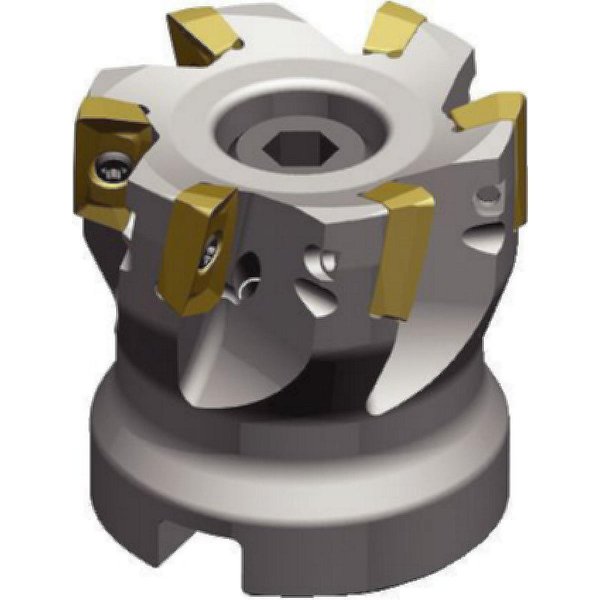

Indexable Face Mill, VSM17 Series, High Speed Steel, 16.10mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 16.10mm, Overall Length 40.00mm, ANSI Code VSM17D050Z04S22XD17, Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, SHCS with Coolant Groove, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HW9, mscSKU: , zoro_no: G3785973, mongo_id: 65bbe8c922d7a989a99173ce

Web Price

$831.24 / each

Qty

Product Details

ANSI Code VSM17D050Z04S22XD17

Arbor Dia. 22.00mm

Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, SHCS with Coolant Groove, Torx Wrench TX15

Coolant Fed Coolant Through

Country of Origin (subject to change) Bulgaria

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 16.10mm

Features Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability

Hub Outside Dia. 45.00mm

Insert Holding Type Screw

Insert Size 1704

Insert Style XD.T PE R

ISO Number VSM17D050Z04S22XD17

Material - Machining High Speed Steel

Max. Speed 25,800 RPM

Number of Inserts 4

Overall Length 40.00mm

Package Quantity 1

Rake -6.3 Degrees Radial, 1 Degrees Axial

Series VSM17
