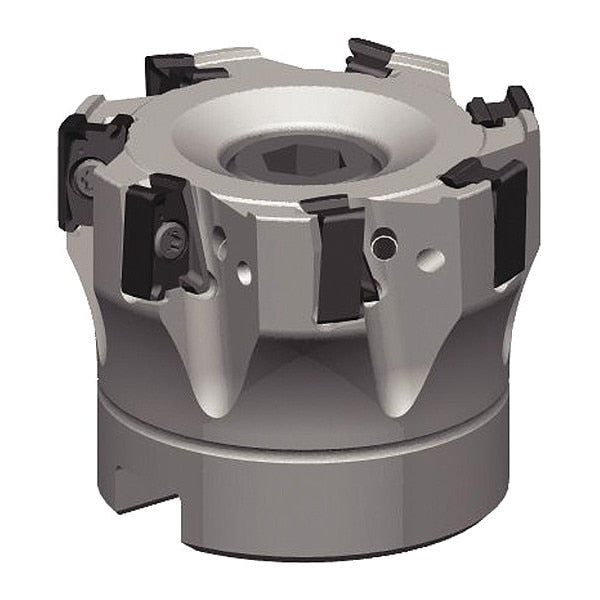

Indexable Face Mill, VSM490-10 Series, 10.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 3/4 in, Depth of Cut 10.00mm, ANSI Code VSM490D200Z09S075XN10, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Screw 3/8 In.-24 x 1 in LG Coolant G, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274LM8, mscSKU: , zoro_no: G3798503, mongo_id: 65bbe7da9a749db82275d570

Web Price

$928.74 / each

Qty

Product Details

ANSI Code VSM490D200Z09S075XN10

Arbor Dia. 3/4 in

Compatible Hardware 3/8-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Screw 3/8-24 x 1 in LG Coolant G

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 10.00mm

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 0 Degrees Roughing Tool with Imbedded Finishing Capability All in One Tool

Hub Outside Dia. 1-3/4 in

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D200Z09S075XN10

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 22,100 RPM

Number of Flutes 9

Number of Inserts 9

Overall Length 40.05mm
