Home / Indexable Face Mill, VSM490-10 Series, 10.00mm Depth of Cut

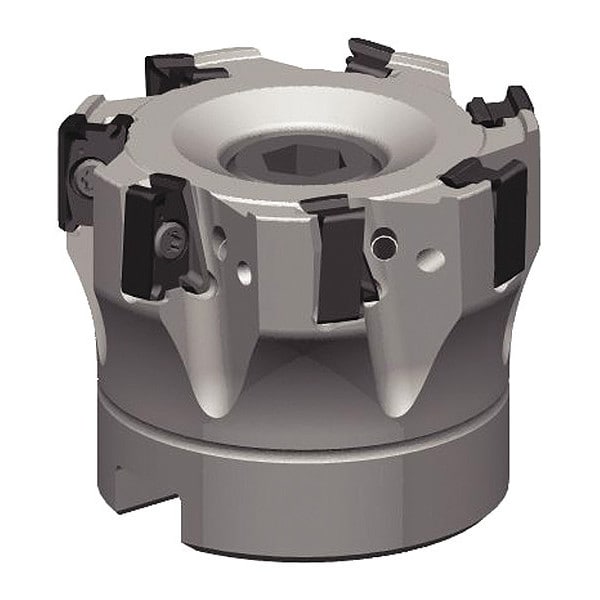

Indexable Face Mill, VSM490-10 Series, 10.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 1-1/2 in, Depth of Cut 10.00mm, ANSI Code VSM490D400Z12S150XN10, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274LN6, mscSKU: , zoro_no: G3789403, mongo_id: 65bbe6913aaddbd5a903c026

Web Price

$1,246.24 / each

Qty

Product Details

ANSI Code VSM490D400Z12S150XN10

Arbor Dia. 1-1/2 in

Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 10.00mm

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 0 Degrees Roughing Tool with Imbedded Finishing Capability All in One Tool

Hub Outside Dia. 85.85mm

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D400Z12S150XN10

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 15,000 RPM

Number of Flutes 12

Number of Inserts 12

Overall Length 2 in
