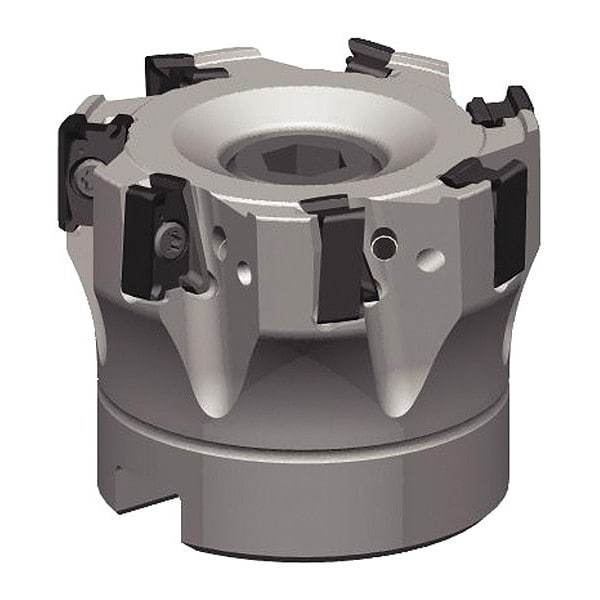

Indexable Face Mill, VSM490-10 Series, 3" Max Cut Dia, 0.3940 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Max. Cutting Dia. 3 in, Arbor Dia. 1 in, Depth of Cut 0.3940 in, ANSI Code VSM490D300Z10S100XN10, Compatible Hardware 1/2 In.-20 UNF x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Screw 1/2 In.-20 x 1 in LG Coolant GR, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274LN4, mscSKU: , zoro_no: G3787845, mongo_id: 65bbe8569a749db822788668

Web Price

$1,161.24 / each

Qty

Product Details

ANSI Code VSM490D300Z10S100XN10

Arbor Dia. 1 in

Compatible Hardware 1/2-20 UNF x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Screw 1/2-20 x 1 in LG Coolant GR

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Dia. 3

Cutting Direction Right Hand

Depth of Cut 0.3940 in

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 0 Degrees Roughing Tool with Imbedded Finishing Capability All in One Tool

Hub Outside Dia. 2.1900 in

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D300Z10S100XN10

Material - Machining High Speed Steel

Max. Cutting Dia. 3 in

Max. Speed 17,600 RPM

Number of Flutes 10

Number of Inserts 10

Number of Inserts Required 10
