Home / Indexable Face Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

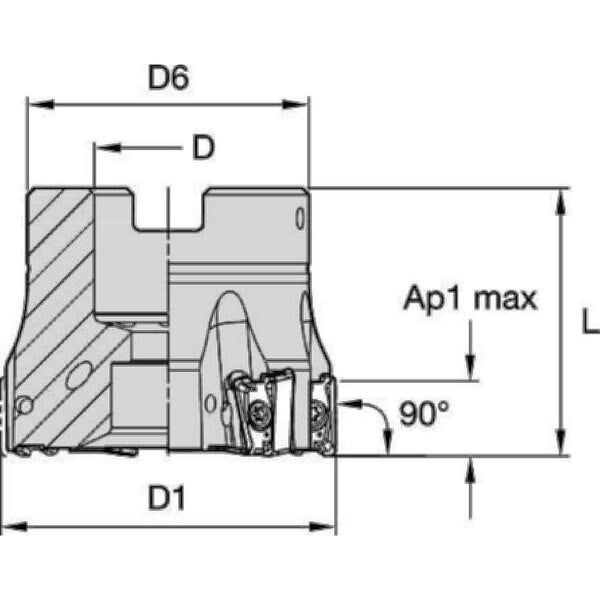

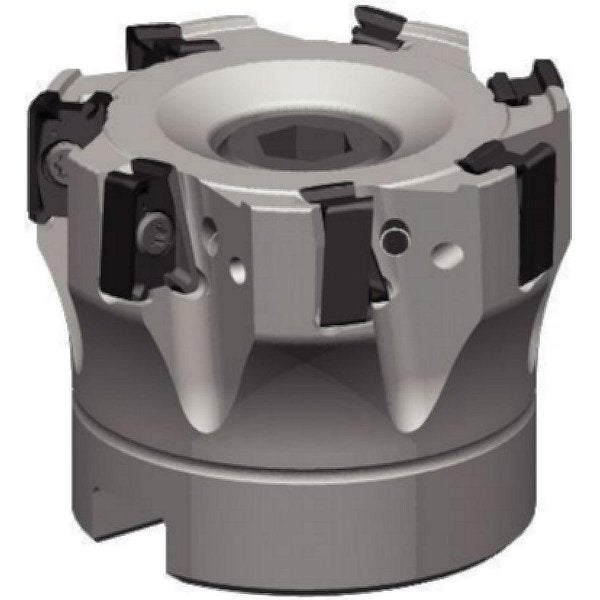

Indexable Face Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 10.00mm, Overall Length 50.00mm, ANSI Code VSM490D080Z08S27XN10, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, SHCS M12 1.75P x 30, SHCS with Coolant Groove, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274LW4, mscSKU: , zoro_no: G3787075, mongo_id: 65bbe98822d7a989a995f071

Web Price

$1,173.74 / each

Qty

Product Details

ANSI Code VSM490D080Z08S27XN10

Arbor Dia. 27.00mm

Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, SHCS M12 1.75P x 30, SHCS with Coolant Groove

Coolant Fed Coolant Through

Country of Origin (subject to change) Spain

Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 10.00mm

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 90 Degrees Roughing Tool with Embedded Finishing Capability in One Tool

Hub Outside Dia. 60.00mm

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D080Z08S27XN10

Material - Machining High Speed Steel

Max. Speed 17,100 RPM

Number of Inserts 8

Overall Length 50.00mm

Package Quantity 1

Rake -12.7 Degrees Radial, -8 Degrees Axial
