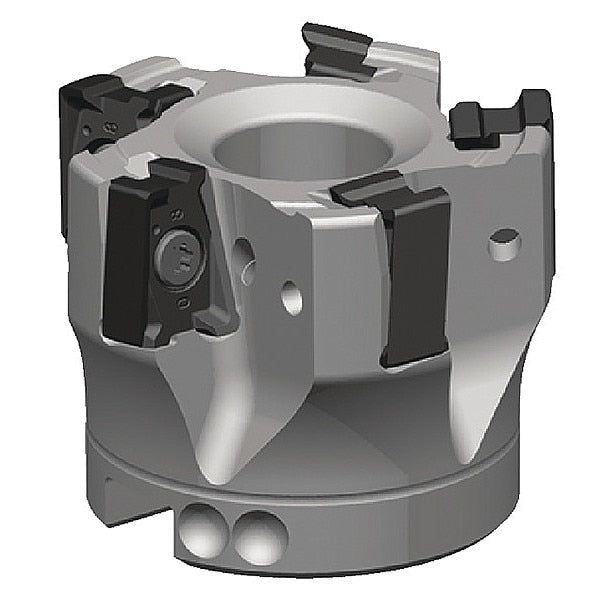

Indexable Face Mill, VSM490-15 Series, 15.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 1-1/2 in, Depth of Cut 15.00mm, ANSI Code VSM490D500Z12S150XN15, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 Ip15, KLS-15 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HL2, mscSKU: , zoro_no: G3798485, mongo_id: 65bbe91622d7a989a9933ef7

Web Price

$1,387.49 / each

Qty

Product Details

ANSI Code VSM490D500Z12S150XN15

Arbor Dia. 1-1/2 in

Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 Ip15, KLS-15 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 15.00mm

Features Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes

Hub Outside Dia. 99.25mm

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 15T608

Insert Style XNGU SRMM

ISO Number VSM490D500Z12S150XN15

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 9,600 RPM

Number of Flutes 12

Number of Inserts 12

Overall Length 60.45mm
