Home / Indexable Face Mill, VSM490-15 Series, 2" Max Cut Dia, 0.5910 in Depth of Cut

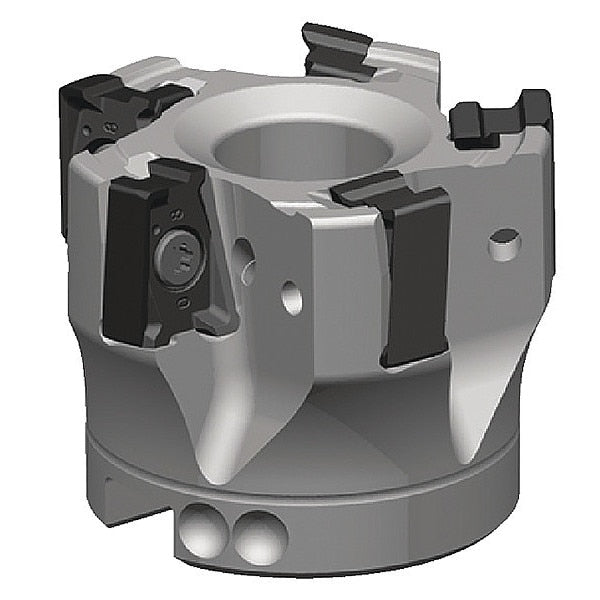

Indexable Face Mill, VSM490-15 Series, 2" Max Cut Dia, 0.5910 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Max. Cutting Dia. 2 in, Arbor Dia. 3/4 in, Depth of Cut 0.5910 in, ANSI Code VSM490D200Z05S075XN15, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, Screw 3/8 In.-24 x 1 in LG Coolant G, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HJ8, mscSKU: , zoro_no: G3785142, mongo_id: 65bbe93c22d7a989a994254d

Web Price

$722.49 / each

Qty

Product Details

ANSI Code VSM490D200Z05S075XN15

Arbor Dia. 3/4 in

Compatible Hardware 3/8-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, Screw 3/8-24 x 1 in LG Coolant G, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) Spain

Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Dia. 2

Cutting Direction Right Hand

Depth of Cut 0.5910 in

Features Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes

Hub Outside Dia. 1-3/4 in

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 15T608

Insert Style XNGU SRMM

ISO Number VSM490D200Z05S075XN15

Material - Machining High Speed Steel

Max. Cutting Dia. 2 in

Max. Speed 16,100 RPM

Number of Flutes 5

Number of Inserts 5

Number of Inserts Required 5
