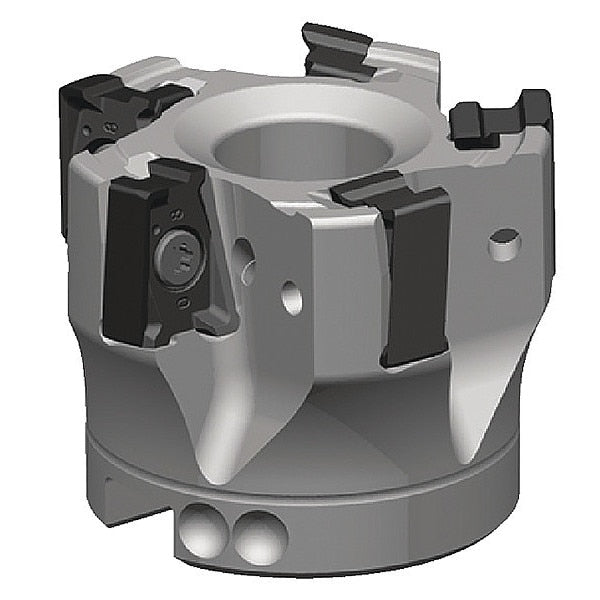

Indexable Face Mill, VSM490-15 Series, 6" Max Cut Dia, 0.5910 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Max. Cutting Dia. 6 in, Arbor Dia. 2 in, Depth of Cut 0.5910 in, ANSI Code VSM490D600Z10S200XN15, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly - 1 In.-14, Insert Screw M4x0.7 x 10 Ip15, KLS-20 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HL3, mscSKU: , zoro_no: G3796981, mongo_id: 65bbe7da9a749db82275d566

Web Price

$1,712.49 / each

Qty

Product Details

ANSI Code VSM490D600Z10S200XN15

Arbor Dia. 2 in

Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly - 1-14, Insert Screw M4x0.7 x 10 Ip15, KLS-20 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Dia. 6

Cutting Direction Right Hand

Depth of Cut 0.5910 in

Features Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes

Hub Outside Dia. 4.8800 in

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 15T608

Insert Style XNGU SRMM

ISO Number VSM490D600Z10S200XN15

Material - Machining High Speed Steel

Max. Cutting Dia. 6 in

Max. Speed 8,600 RPM

Number of Flutes 10

Number of Inserts 10

Number of Inserts Required 10
