Home / Indexable Face Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut

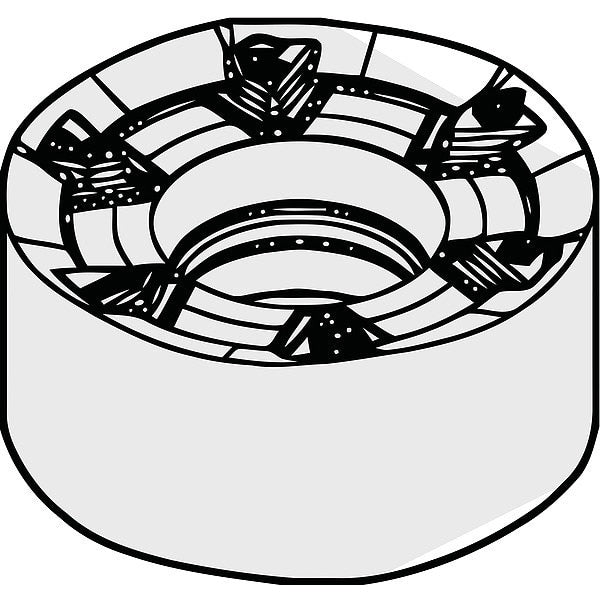

Indexable Face Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 15.00mm, Overall Length 50.00mm, ANSI Code VSM490D080Z05S254XN15JIS, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, SHCS M12 1.75P x 30, SHCS with Coolant Groove, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274LE6, mscSKU: , zoro_no: G3790173, mongo_id: 65bbe7fe22d7a989a98cf98e

Web Price

$1,339.99 / each

Qty

Product Details

ANSI Code VSM490D080Z05S254XN15JIS

Arbor Dia. 1

Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, SHCS M12 1.75P x 30, SHCS with Coolant Groove, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Pocketing, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 15.00mm

Features Best-in-Class Wall Finish at Axial Stepping Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 90 Degrees Roughing Tool with Imbedded Finishing Capability in One

Hub Outside Dia. 50.00mm

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 15T608

Insert Style XNGU SRMM

ISO Number VSM490D080Z05S254XN15JIS

Material - Machining High Speed Steel

Max. Speed 12,300 RPM

Number of Inserts 5

Overall Length 50.00mm

Package Quantity 1

Rake -13.657 Degrees Radial, -8 Degrees Axial
