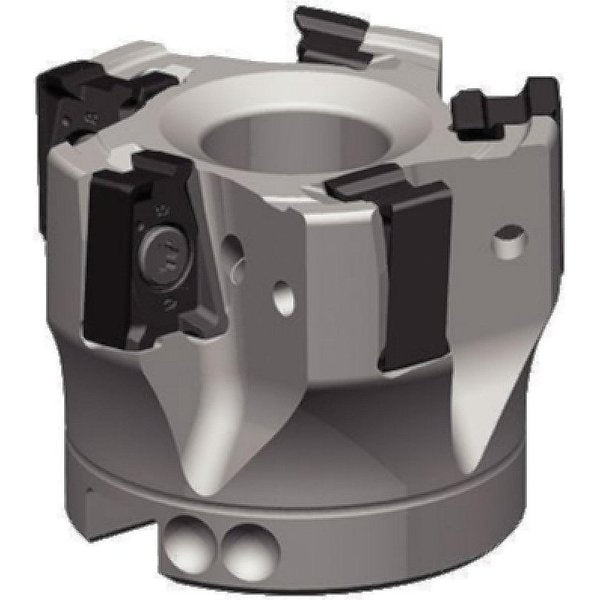

Indexable Face Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 15.00mm, Overall Length 50.01mm, ANSI Code VSM490D080Z07S27XN15, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, SHCS with Coolant Groove, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274HJ2, mscSKU: , zoro_no: G3793524, mongo_id: 65bbedfe526e052139ae2f67

Web Price

$1,424.99 / each

Qty

Product Details

ANSI Code VSM490D080Z07S27XN15

Arbor Dia. 27.00mm

Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, SHCS with Coolant Groove, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) Multiple

Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 15.00mm

Features Effective Internal Coolant Feature, Precisely Reaching the Cutting Edge, Stepless Solution, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 90 Degrees to Run Precise Applications in Multiple Axial Passes

Hub Outside Dia. 60.00mm

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill 4

Insert Size 15T608

Insert Style XNGU SRMM

ISO Number VSM490D080Z07S27XN15

Material - Machining High Speed Steel

Max. Speed 12,300 RPM

Number of Inserts 7

Overall Length 50.01mm

Package Quantity 1

Rake -13.656 Degrees Radial, -8 Degrees Axial
