Home / Indexable Face Mill, VSM890 Series, 9.80mm Depth of Cut

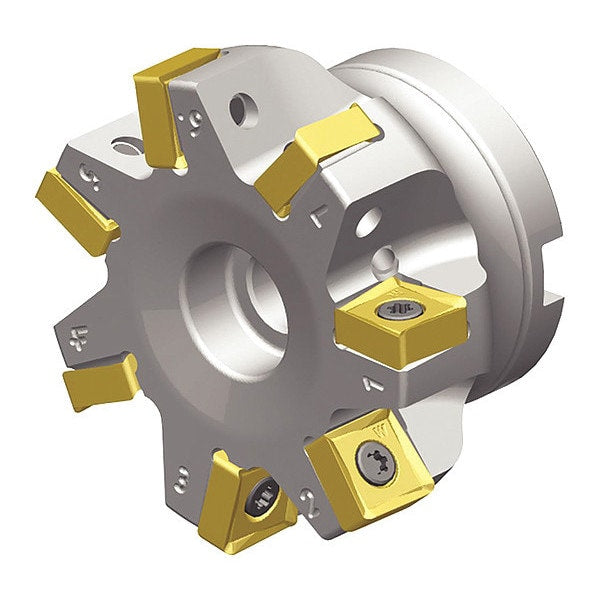

Indexable Face Mill, VSM890 Series, 9.80mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Arbor Dia. 1-1/2 in, Depth of Cut 9.80mm, ANSI Code VSM890D500Z07S150SN12, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 IP15, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274NT3, mscSKU: , zoro_no: G3788554, mongo_id: 65bbe66f3aaddbd5a902da64

Web Price

$1,508.74 / each

Qty

Product Details

ANSI Code VSM890D500Z07S150SN12

Arbor Dia. 1-1/2 in

Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 IP15, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) India

Cutting Application Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 9.80mm

Features Less Bur Creation on the Workpiece, Optimized Chip Gash Design for Proper Chip Evacuation, True 0 Degrees Wall and Stepping Down Capability, User-Friendly Pocket Numbering System

Hub Outside Dia. 96.77mm

Insert Holding Type Screw

Insert Shape 90 Degrees Square

Insert Size 120408

Insert Style SNHX PNERMM

ISO Number VSM890D500Z07S150SN12

Material High Speed Steel

Material - Machining High Speed Steel

Max. Speed 13,800 RPM

Number of Flutes 7

Number of Inserts 7

Overall Length 60.45mm
