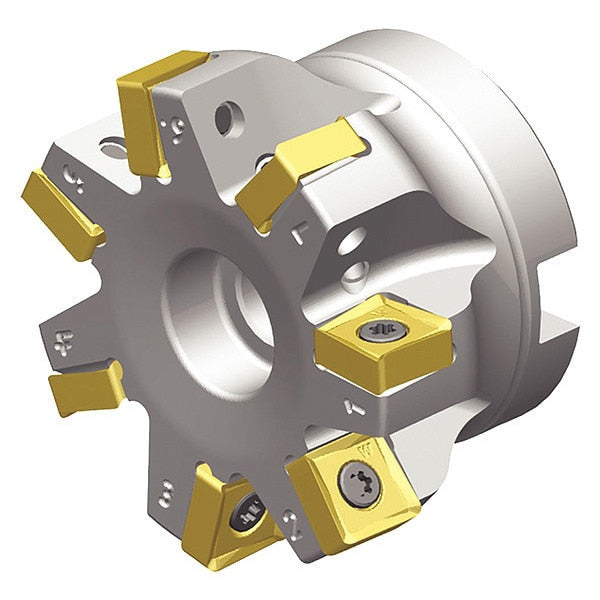

Indexable Face Mill, VSM890 Series, High Speed Steel, 9.80mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 9.80mm, Overall Length 63.00mm, ANSI Code VSM890D125Z14S40SN12, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly - M20, Insert Screw M4x0.7 x 10 IP15, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
graingerSKU: 274NP3, mscSKU: , zoro_no: G3796150, mongo_id: 65bbedfe526e052139ae2f6d

Web Price

$1,796.24 / each

Qty

Product Details

ANSI Code VSM890D125Z14S40SN12

Arbor Dia. 40.00mm

Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly - M20, Insert Screw M4x0.7 x 10 IP15, Torx Plus Drive Wrench DT15IP

Coolant Fed Coolant Through

Country of Origin (subject to change) India

Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 9.80mm

Features Less Bur Creation on the Workpiece, Optimized Chip Gash Design for Proper Chip Evacuation, True 90 Degrees Wall and Stepping Down Capability, User-Friendly Pocket Numbering System

Hub Outside Dia. 89.00mm

Insert Holding Type Screw

Insert Shape 90 Degrees Square

Insert Size 120408

Insert Style SNHX PNERMM

ISO Number VSM890D125Z14S40SN12

Material - Machining High Speed Steel

Max. Speed 13,900 RPM

Overall Length 63.00mm

Package Quantity 1

Rake -13 Degrees Radial, 3 Degrees Axial

Series VSM890
