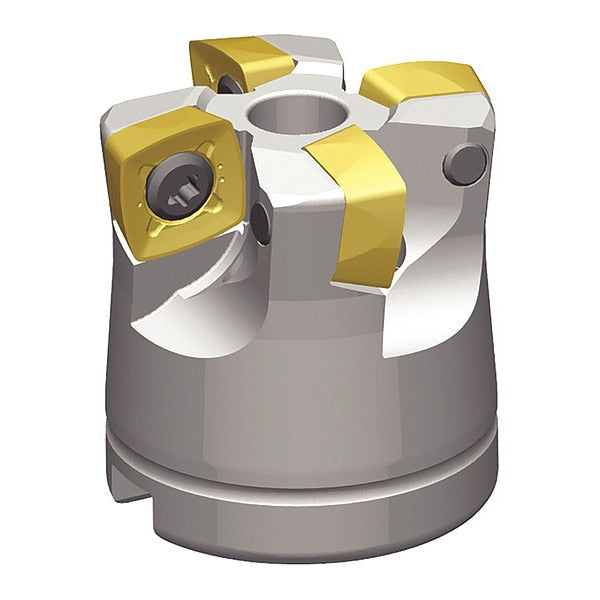

Indexable Face Mill, VXF Series, 0.0984 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Face Mill, Max. Cutting Dia. 3 in, Arbor Dia. 1 in, Depth of Cut 0.0984 in, ANSI Code VXF300Z05S100XD12, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver, Coolant Fed Coolant Through, Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Spiral Circular
graingerSKU: 274NW6, mscSKU: , zoro_no: G3793655, mongo_id: 65bbe73e3aaddbd5a90839d9

Web Price

$949.99 / each

Qty

Product Details

ANSI Code VXF300Z05S100XD12

Arbor Dia. 1 in

Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver

Coolant Fed Coolant Through

Country of Origin (subject to change) India

Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Spiral Circular

Cutting Direction Right Hand

Depth of Cut 0.0984 in

Features 16.5 Degrees Lead Angle Redistributes Cutting Forces in the Spindle Z-Axis Direction, Durable Cutting Edges Qualified to Machine a Wide Range of Materials, Greatly Reduces Tool Deflection and Vibrations for Improved Tool Life, Suitable for Long Tool Reach, Unique Integrated Radial Wiping Facet to Achieve a Nice Wall Finish at Pocket and Helical Interpolation Milling, WS40PM Best In Class Milling Grade for Machining Stainless Steel and HTA

Hub Outside Dia. 2.0866 in

Insert Holding Type Screw

Insert Shape 90 Degrees Square

Insert Size 120512

Insert Style XDPT ERMM

ISO Number VXF300Z05S100XD12

Material High Speed Steel

Material - Machining High Speed Steel

Max. Cutting Dia. 3 in

Max. Speed 17,500 RPM

Number of Flutes 5

Number of Inserts 5
