Home / Indexable Face Mill, VXF Series, High Speed Steel, 2.50mm Depth of Cut

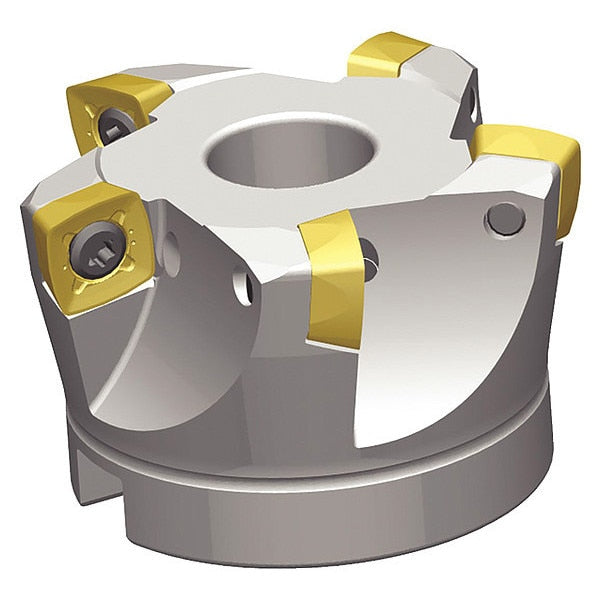

Indexable Face Mill, VXF Series, High Speed Steel, 2.50mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 2.50mm, Overall Length 40.00mm, ANSI Code VXF040Z04S22XD12, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Mounting Screw M10x1.5 x M8, Torx Driver, Coolant Fed Coolant Through, Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Spiral Circular
graingerSKU: 274NV3, mscSKU: , zoro_no: G3787163, mongo_id: 65bbe62b3aaddbd5a9011027

Web Price

$698.74 / each

Qty

Product Details

ANSI Code VXF040Z04S22XD12

Arbor Dia. 22.00mm

Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Mounting Screw M10x1.5 x M8, Torx Driver

Coolant Fed Coolant Through

Country of Origin (subject to change) India

Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Spiral Circular

Cutting Direction Right Hand

Depth of Cut 2.50mm

Hub Outside Dia. 38.00mm

Insert Holding Type Screw

Insert Shape 90 Degrees Square

Insert Size 120512

Insert Style XDPT ERMM

ISO Number VXF040Z04S22XD12

Material - Machining High Speed Steel

Max. Cutting Dia. 40.00mm

Max. Speed 26,500 RPM

Number of Inserts 4
