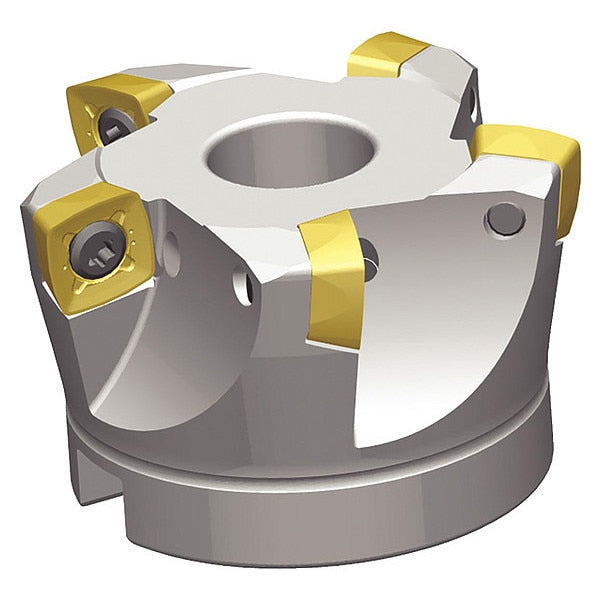

Home / Indexable Face Mill, VXF Series, High Speed Steel, 2.50mm Depth of Cut

Indexable Face Mill, VXF Series, High Speed Steel, 2.50mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 52.00mm, Depth of Cut 2.50mm, Overall Length 40.00mm, ANSI Code VXF052Z05S22XD12, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver, Coolant Fed Coolant Through, Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Spiral Circular
graingerSKU: 274NV6, mscSKU: , zoro_no: G3786770, mongo_id: 65bbe96322d7a989a9950a4b

Web Price

$837.49 / each

Qty

Product Details

ANSI Code VXF052Z05S22XD12

Arbor Dia. 22.00mm

Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver

Coolant Fed Coolant Through

Country of Origin (subject to change) India

Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Spiral Circular

Cutting Direction Right Hand

Depth of Cut 2.50mm

Hub Outside Dia. 48.00mm

Insert Holding Type Screw

Insert Shape 90 Degrees Square

Insert Size 120512

Insert Style XDPT ERMM

ISO Number VXF052Z05S22XD12

Material - Machining High Speed Steel

Max. Cutting Dia. 52.00mm

Max. Speed 22,000 RPM

Number of Inserts 5
